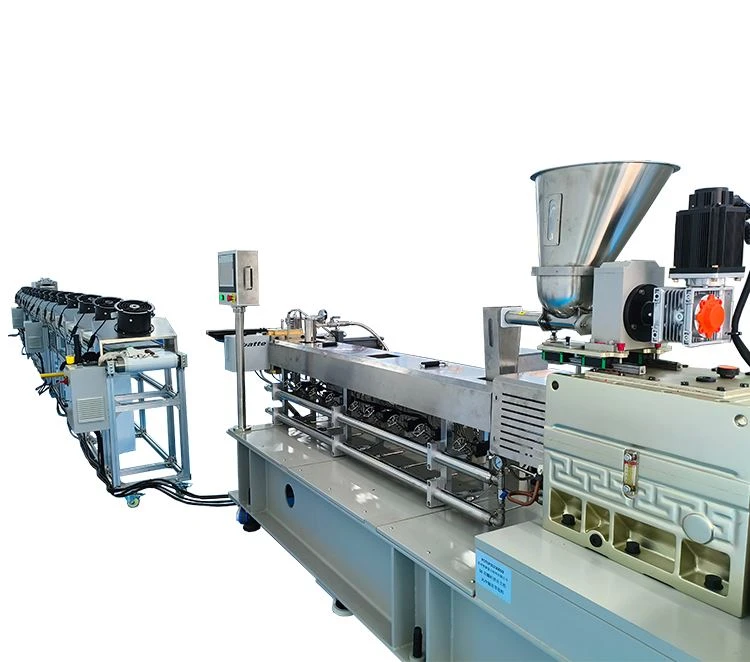

Twin Screw Extruder Pelletizing Line

1. Adopting computerized precise design, with excellent self-cleaning and arbitrary interchangeability. With more than ten years of experience in research and development and design of screw configuration and software technology, it can efficiently realize various functions and processes such as transporting and plasticizing, mixing and kneading, shearing and dispersing, homogenizing and homogenizing, exhausting and de-volatilizing, and building up pressure and extruding according to the needs. In response to the endless new polymer materials, new processes, accordingly continue to introduce all kinds of new screw components and combination of configurations.
2, Building block type barrel and screw structure, can be combined according to the needs of the experimental process, easy to use, material applicability, barrel and screw material using special steel, wear-resistant and corrosion-resistant.
3,The screw element of the main machine adopts the involute spline form synchronized with the international level for connection with the core shaft, which fully exploits the potential of the limited structural space and realizes higher working torque and larger screw working volume.
4,New torque distribution transmission device, strengthened design safety margin, high-precision hardened gear grinding, key bearings are imported, lubrication system interlock protection, the pursuit of higher reliability.
5,According to different material process and application requirements, it provides wider choice for users at all levels.
6,  A variety of forms of metering and charging structure and system, single-screw, twin-screw, hollow spring type, engaging and non-engaging, etc., can cover all kinds of materials to adapt to the state.
7,Twin-screw extruder each characteristic pelletizing system, water-cooled pull-strip pelletizing, air-cooled pull-strip pelletizing, air-cooled die surface hot cutting pelletizing, water ring die surface hot cutting pelletizing, etc., according to the need to recommend the selection.
8, Conventional twin-screw extruder material for high-quality nitrided steel surface nitriding treatment, can meet most of the operational requirements. Special materials can be selected to provide the corresponding corrosion resistance, wear resistance or abrasion resistance and other special materials and treatments.
9, Low vibration, low noise, the whole machine can be installed without foundation, placed on the level ground can be, reducing the site and installation requirements, more convenient to use.

It is mainly composed of twin-screw extruder, die head, air-cooled conveyor belt, pelletizer, die surface hot cutting, cyclone separator, electrical control cabinet and so on.

1. Host: shield matte 304 stainless steel, the surface of the weld is polished smooth, paste the anti-scald logo

2. Extruding system: equipped with vacuum gauge, vacuum pump, tube fitting, ball valve, metal hose, stainless steel pipe, etc., in all the rotating institutions at the point of engagement with protective cover, and painted orange-red eye-catching signs, stickers on the point of engagement warning signs;

3. Air-cooled conveyor belt: 500*15000MM

4. Mold surface hot cutting: made of high-performance materials with good corrosion and abrasion resistance.

5. Electrical control cabinet: the head is equipped with pressure and melt temperature display, in which the melt pressure is interlocked with the main motor to realize overpressure fault alarm and shutdown protection;







Mechanical engineering and polymer material processing and moulding theories are deeply established in Guangzhou POTOP, which combines electrical, electronic, and software technologies to build high-end polymer material experiments and pilot production equipment for customers. POTOP manufactures equipment that meets high performance standards, and tight quality control is applied to the production process and the progress of non-standard equipment projects for each piece of equipment. The equipment's spare parts are thoroughly audited, and the outsourced parts are supplied by international big names. Based on our strong R&D capabilities and technological advantages, we continue to delve into the market and client needs, broaden our industry, and gain development experience.We are dedicated to offering the best and most flexible service while developing the highest quality polymer material experiment and pilot production equipment for each customer.
