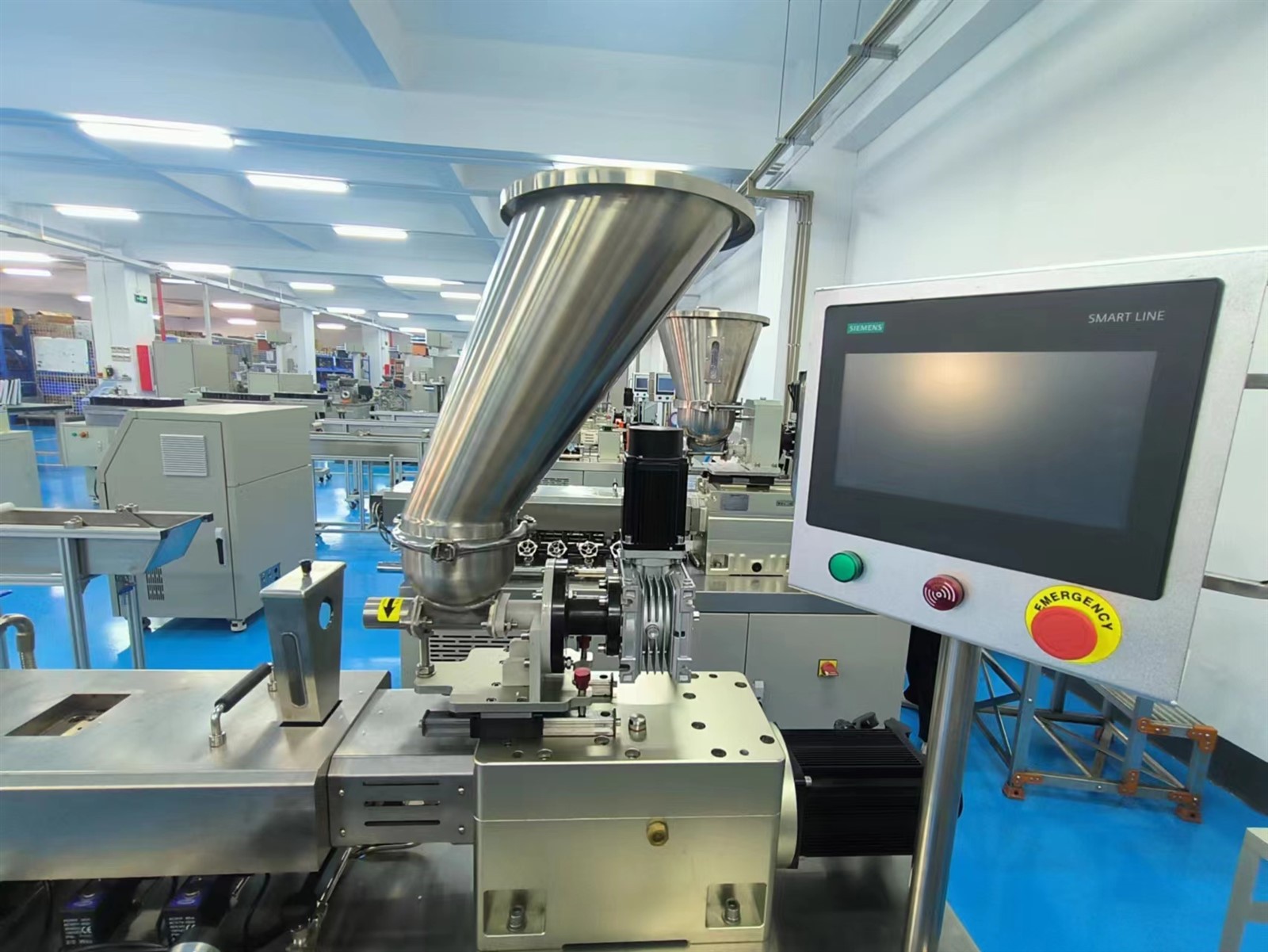

Lab 16mm Three Screw Extruder

 Lab 16mm Three Screw Extruder adopts split barrel and parallel meshing isotropic three-screw structure, which can recombine the threaded elements according to the material characteristics to realize the mixing of materials with different characteristics and improve the mixing and blending effect. It is mainly used for filling, blending, modifying, increasing, chlorinating, processing of rubber, plastic and engineering resin, polypropylene and high water absorption resin.

1. Split barrel and screw structure, can be combined according to the needs of the experimental process, easy to use, material applicability, barrel and screw material using special steel, wear-resistant and corrosion-resistant.
2. Quick-opening head, screen changer, faster material cleaning, optional melt pump, precision, high-pressure extrusion can be realized.
3. Humanized structure design, SIEMENSPLC touch screen, more convenient operation.
4. The die head is made of high-performance materials with excellent corrosion and abrasion resistance.
5. The threading element's tooth shape is designed by computer optimization, which has good self-cleaning ability and the best mixing and plasticizing ability. The thread element is made of high-quality alloy tool steel and the working surface is hardened, which is suitable for a variety of mixing requirements.
6. The temperature control system is heated by cast aluminum or cast copper heater, which has fast heating and long service life, and the cooling is made by high temperature heat-conducting oil, which has no temperature shock and can be circulated for cooling.
7. Each driving motor of the whole machine can be controlled locally or online, which is easy to operate, simple to understand and has a beautiful interface.

1. Main motor: adopts servo motor, rated speed 1500r/min, stepless adjustable.
2. Transmission box: excellent materials, precision processing means to ensure that the transmission box transmission is smooth, high torque transfer capacity, low noise.
3. Screw: It consists of a whole mandrel and a number of threaded elements with different specifications and good interchangeability installed on it, and kneading elements.
4. Barrel: there are three types of barrel structure, closed barrel, feeder barrel and exhaust barrel, according to the user's process requirements for selection, to form a complete barrel
5. Manual screen changer: easy to operate, easy to change the screen, and the porous plate can be taken out.
6. Die head: made of high-performance materials with good corrosion and abrasion resistance.
7. PLC intelligent control system: multi-channel information input and output, with powerful information acquisition, information judgment, information feedback and other functions.

Guangzhou POTOP  Co. Ltd. is engaged in polymer rheological performance characterization instrument manufacturing, polymer processing and molding laboratory equipment manufacturing and polymer new molding R & D equipment manufacturing enterprises. Polymer Processing and Molding Laboratory Equipment and Polymer New Molding R&D Equipment
