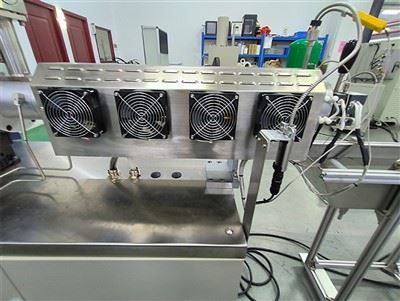

Single Screw Extruder Machine
single screw extruder machine is a kind of high-efficiency mixing, mixing and extruding equipment.
Description
Products Feature
1. The barrel adopts advanced split design, and the screw consists of various threaded elements with interchangeability.
2. Computer optimized design with good self-cleaning ability and best volumetric power.
3. It can be combined with first-order, second-order or multi-order vacuum exhaust structure, with strong exhaust de-volatilization ability, capable of completing all kinds of high de-volatilization mixing operations.
4. The barrel can be made of nitrided steel, and for users with abrasive or corrosive work requirements, the barrel can be made of bimetallic high wear and corrosion-resistant barrel.
5. Each driving motor of the whole machine can be controlled locally or online, which is easy to operate, simple to understand and has a beautiful interface.
6. The main machine is equipped with single-screw feeding system, the feeding amount can be continuously and smoothly adjusted, and the production capacity of the machine can be conveniently adjusted within a certain range.
Working Principle
An extruder is a machine that melts plastic in a cylindrical steel chamber (cylinder) that is nitrided, and extrudes it from a mold at the end of the chamber (die) while mixing it with a screw. It is a general term for machines that mold plastic products into various shapes by cooling and molding the molten plastic.
Products Detail
Technical Parameters
|
Model |
MGSL-30/28 |
|
Applicable materials |
General-purpose plastics, engineering resins, etc. |
|
Screw diameter |
30MM |
|
L/D |
28 |
|
Screw speed |
0-120rpm |
|
Pressure measurement range |
0-50mpa |
|
Pressure measurement accuracy |
0.5%f.s |
|
Heating/cooling method |
Electrically heated/air-cooled |
|
Operating temperature |
Rt-430℃ |
|
Temperature control accuracy |
±1℃ |
|
Maximum output |
3kg/h |
|
L×W×H |
5300mm×1160mm×1700mm |
|
Weight |
About 1200kg |
