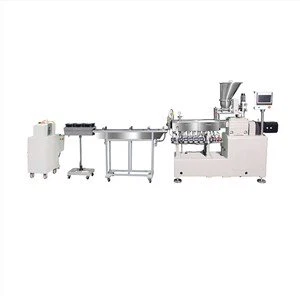

Lab Twin Screw Extruder Machine

Lab Twin Screw Extruder Machine

Advantages of Lab Twin Screw Extruder Machine

1, Intuitive understanding of the wear of wearing parts. Due to the convenience of opening, it can be found at any time the wear degree of threaded components and barrel lining sleeve, so as to carry out effective maintenance or replacement. It will not be found when there is a problem in extrusion products, resulting in unnecessary waste.

2. Optimize production costs during the manufacture of masterbatches, as color changes frequently necessitate adjustments. The open processing area can be briefly opened, allowing for a detailed analysis of the mixing process by examining the melt profile along the screw. Currently, conventional twin screw extruders require substantial quantities of cleaning materials and significant time and energy expenditures when switching colors, leading to raw material waste. The split-type twin screw extruder offers a solution to this issue: it enables rapid color changes by opening the cylinder in just a few minutes, facilitating manual cleaning and reducing the reliance on cleaning materials, thereby conserving costs.

3. Improve labor efficiency. In equipment maintenance, the ordinary twin screw extruder often has to remove the heating and cooling system first, and then the whole screw out. The split twin screw is not, as long as loosen a few bolts, turn the worm gear box handle device to lift the upper half of the extension barrel can open the whole barrel, and then maintenance. This shortens the maintenance time and reduces the labor intensity.

4, The current global development trend of twin-screw extruders is characterized by a focus on high torque, elevated speeds, and reduced energy consumption. The key benefit of high-speed operation is the significant boost in production output. Among these extruders, the split twin-screw extruder stands out, capable of achieving rotation speeds of up to 500 RPM. This exceptional performance endows it with a distinct advantage in processing materials with high viscosity and those sensitive to heat, ensuring efficiency and quality in manufacturing processes.

5, A wide range of applications, can be applied to a variety of materials processing

6, In addition to its other advantages, the conventional twin screw extruder is capable of achieving high productivity, superior quality, and exceptional efficiency.





Lab Twin Screw Extruder Machine application materials



Packing of Lab Twin Screw Extruder Machine



Hot Tags: Lab Twin Screw Extruder Machine, China, suppliers, manufacturers, factory, price, for sale, Small Twin Screw Pelleting Extruder, Lab Twin Screw Compounding Line, Twin Screw Die Extrusion Die Cutting Pelletizing Line, Small Twin Screw Compounding Extruder, Multi Screw Stretch Cast Film Extruder, Lab Cast Film Machine

Parameters of Lab Twin Screw Extruder Machine

Item	MEDI-22/40
Applicable materials	General-purpose plastics, engineering resins, etc
Screw diameter	21.7mm
Long diameter ratio of screw	40
The screw speed	0-600rpm
Pressure measurement range	0-50mpa
Pressure measurement accuracy	0.5%f.s
Heating / cooling mode	Electric heating / oil cooling
service temperature	Room temperature was at-350℃
Temperature control accuracy	±1℃
maximum production	20kg/h
Power of main motor	7.5kw
The number of grain cut	Four root
Cut grain length	3±0.2 mm
Cut grain diameter	1-4 mm
Cut knife speed	0-800rpm
Particle-cutting motor power	1.1kw
control method	SIEMENS PLC Control
working voltage	Three-phase 380V AC ± 10%, single-phase 220VAC ± 10%, 50Hz
power rating	About 25kw
The long myocardium is high in width and oneself	5300mm ×1160mm ×1700mm
The weight of the machine	About 1,200 kg
