XPS Casting Film Single Screw Extrusion
XPS is a foam insulation made from polystyrene beads melted and extruded into board form. It is known for its high insulation value, durability and moisture resistance, making it a popular choice for building and construction insulation.
Description
Product Features
servo motor
Each power roller is driven independently by servo motors, with precise roller speed control and good synchronization performance.

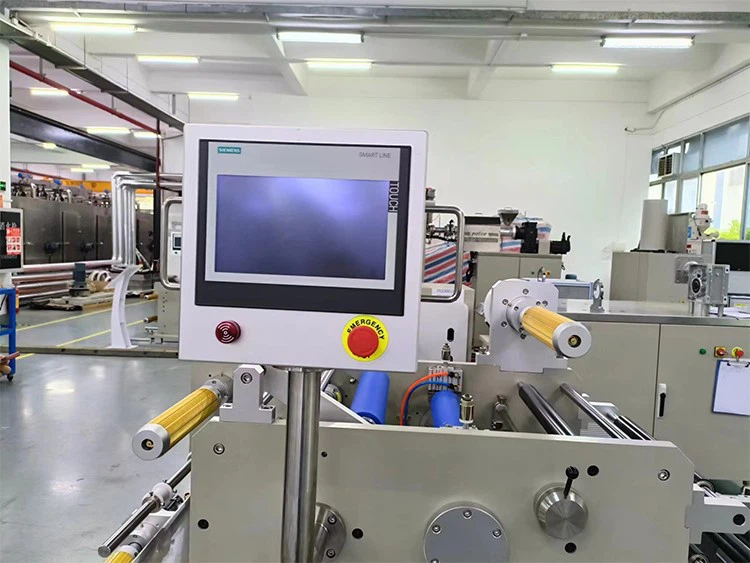

intelligent operation
All parameter settings, system control, data logging, etc. are operated/displayed via the touch screen mounted on top of the instrument.

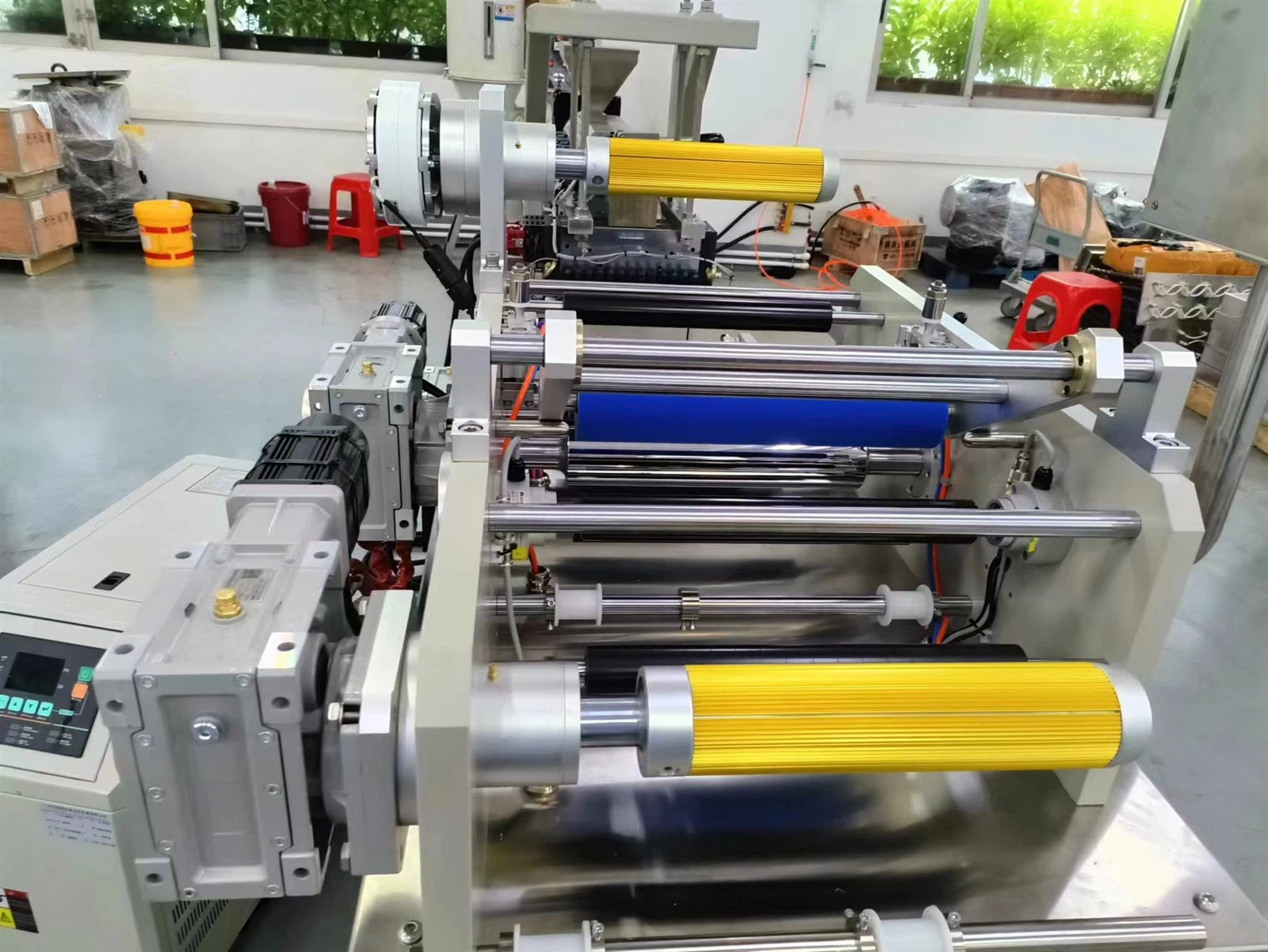

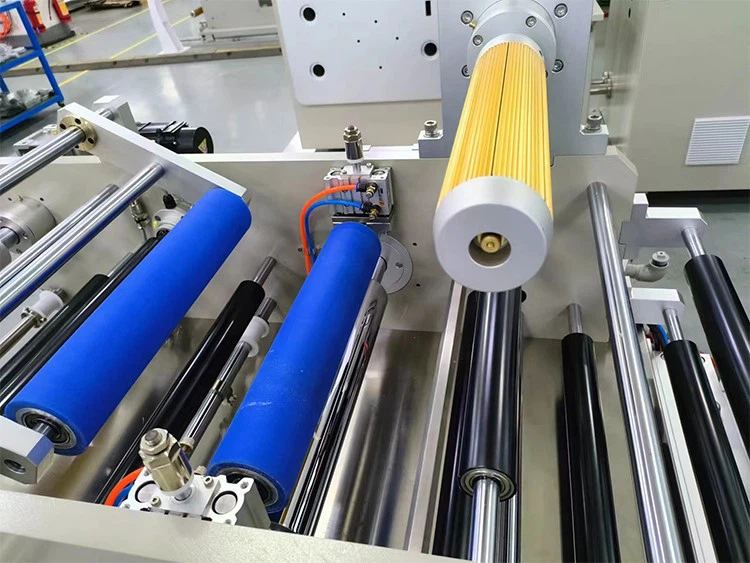

casting rollers
Independent motor drive, adjustable rotation speed, hard chrome plated roll surface, internal heating by thermal oil.
Traction component
consists of upper rubber roller and lower steel roller, the lower steel roller is driven by an independent motor with adjustable rotation speed.
Product Details
XPS is a foam insulation made from polystyrene beads melted and extruded into board form. It is known for its high insulation value, durability, and moisture resistance, making it a popular choice for building and construction insulation. It is widely used in building insulation, packaging materials, transportation, and electronics.
Technical Parameters
|
Screw diameter |
Φ25 mm |
|
L/D |
28：1 |
|
Maximum screw speed |
120 rpm |
|
Working voltage |
3-phase AC380 V, 50 Hz |
|
Material |
XPS/PP/PE etc. |
|
Working temperature |
350 ℃ |
|
Temperature control accuracy |
±1 ℃ |
|
Die width |
350mm |
|
Die lip opening adjustment range |
0-0.8mm |
|
Die lip adjustment mode |
manual adjustment |
competitive advantage
The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.
competitive price
Favorable price, factory direct sale
1 years warranty
1 year product warranty.
24H Online Service
Feel free to contact us if you have any questions, we are always online!
Global Shipping
We ship by sea, car, courier and more!
We are always at your service when you need
Guangzhou POTOP Co.Ltd. is engaged in polymer rheological performance characterization instrument manufacturing, polymer processing and molding laboratory equipment manufacturing and polymer new molding R & D equipment manufacturing enterprises.
