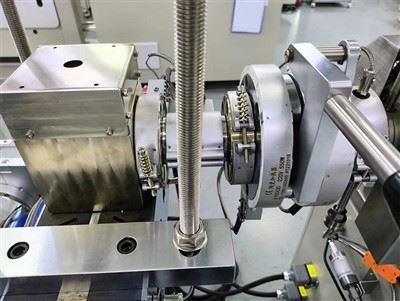

Optical Catalysis Casting Experiment Line





product feature

01.

intelligent operation

All parameter settings, system control, data logging, etc. are operated/displayed via an operator screen mounted on the door panel.

02.

Sheet die head

Die head width 350mm, the die head is made of

high-performance materials with excellent corrosion

and abrasion resistance.

1)Main motor: 25 screws with servo motor.

2)Reduction gearbox: reduction ratio 12.5, can withstand the screw axial thrust
3)Extrusion system: mainly composed of screw, barrel and die.
4)Temperature control system: it is composed of barrel and die head heating system, barrel cooling system and temperature measurement and control system.

(1) Casting roller: driven by independent motor, rotating speed is adjustable, the surface of the roller is plated with hard chrome treatment, and the interior is heated by heat-conducting oil. The roller frame can be moved up and down by elevator.
(2) Traction component: it consists of upper rubber roller and lower steel roller, the lower steel roller is driven by an independent motor with adjustable rotating speed. The surface of the rubber roller is covered with silicone, the material is soft, and the rubber roller can be moved up and down by controlling the cylinder.
(3) Winding assembly: the air expansion shaft is driven by a torque motor with adjustable rotating speed. The air expansion shaft has a built-in air pressure device, so the paper tube is mounted on the air expansion shaft, and the compressed gas can be charged to expand the air expansion shaft, and the air expansion shaft can be driven to drive the paper tube to wind up the paper tube.



 Products Feature











Technical Parameters



Screw diameter	Φ25 mm
L/D	28：1
Maximum screw speed	120 rpm
Working voltage	3-phase AC380 V, 50 Hz
Material	XPS/PP/PE etc.
Working temperature	350 ℃
Temperature control accuracy	±1 ℃
Die width	350mm
Die lip opening adjustment range	0-0.8mm
Die lip adjustment mode	manual adjustment

why choose us



why choose our products



Guangzhou POTOP Co.Ltd. is engaged in polymer rheological performance characterization instrument manufacturing, polymer processing and molding laboratory equipment manufacturing and polymer new molding R & D equipment manufacturing enterprises, Guangzhou POTOP in order to adapt to market changes, increase the functionality of the film In order to adapt to the market changes, Guangzhou POTOP has increased the functional thin film processing and molding process technology, equipment research and development efforts, initially with a variety of functional thin film complete sets of experimental We have the initial ability to manufacture a variety of functional film complete sets of laboratory equipment to better meet the needs of domestic and foreign customers.

Q: Can you customize the machine?

A: We can design and manufacture all kinds of non-standard  machinery according to customers requirement. OEM is available for POTOP Products

Q: will you provide after-sale service after we buy the machines?

A: Yes, we will guide you the installation and operation steps when you receive the machine.

Q: You accept customization service? Can I have my logo on the machine?

A: Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine

Q: How to protect my private information safe?

A: Protect your sales area, ideas of design and all your private information.

Q: After an order is placed, when to deliver?

A: Generally about 10~28 days, if we have inventory, we can arrange shipment within 3 days, please note that the length of our production depends on the specifi product and quality of the product

Q: How many years manufacture experience do you have ?

A: We have 12 years' experience in this field. All staff have rich experiences to finish their work.
