PP, PE, PET, PLA, PBATCasting Film Test Line

Name: PP, PE, PET, PLA, PBATCasting Film Test Line
Brand: POTOP
SKU: 240987114

applications Blending modification Plastics of different types and grades are mixed and extruded to form homogeneous plastic alloys or blends to obtain polymer materials with specific properties; Filling modification Adding various inorganic fillers, such as calcium carbonate and talcum powder,...

Send Inquiry

Description

applications

Blending modification

Plastics of different types and grades are mixed and extruded to form homogeneous plastic alloys or blends to obtain polymer materials with specific properties;

Filling modification

Adding various inorganic fillers, such as calcium carbonate and talcum powder, to the plastic matrix can significantly reduce the cost of products while improving the physical and mechanical properties of the material;

Functionalization of composite materials

Mix various additives into plastics, such as stabilizers, flame retardants, colorants, etc., to obtain new materials that are evenly dispersed and have specific functions;

Enhanced modification

Add reinforcing components, such as glass fiber, carbon fiber and other fillers, to the plastic matrix to improve the physical and mechanical properties of the composite material;

The biggest advantage of this instrument is that it can perform online dynamic testing on the processing parameters of various materials under conditions close to the actual processing conditions, and the test data (including melt temperature, melt pressure, screw speed, motor current, etc.) can be displayed in real time in the form of curves or numbers, providing users with reliable experimental data for scientific research.

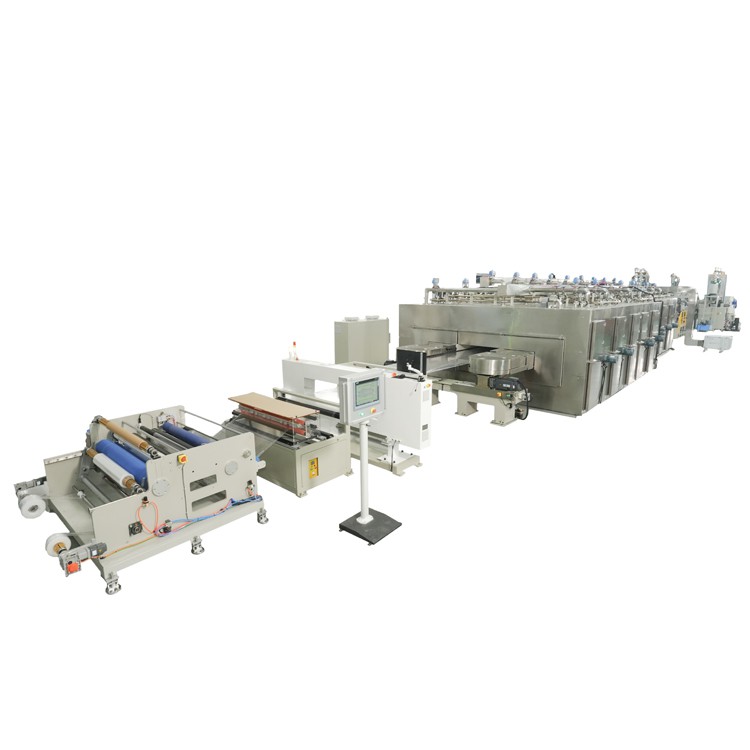

The high-end functional film biaxial stretching test line is mainly composed of a five-layer co-extrusion unit, a casting machine, a longitudinal stretching machine (MDO), a transverse stretching machine (TDO), an automatic winding unit, a central control system and other parts. It can be used for the research and development of new biaxial stretching film products made of different materials such as PP, PA, PE, PET, PLA, etc., as well as small-scale trials and small-batch production proofing through simple adjustment of the configuration.

product-4096-3072

The molding die is the most critical device that determines the shape and size of the casting. The internal structure of the die head is designed based on the characteristics of the type of plastic, melt fluidity, etc. The purpose is to ensure that the flow rate of the melt is uniform throughout the outlet, the thickness of the product is uniform, and dead corners inside the die head are avoided to avoid degradation caused by the melt. The standard configuration die head of this instrument is made of high-performance materials with good corrosion resistance and wear resistance.

product-4096-3072

Product parameter

Name	Parameters
Screw diameter	35mm
Screw aspect ratio	1:28
Rated power of screw motor	Servo motor 7.5Kw
Rated speed of screw motor	2000r/min
Maximum speed of screw	160rpm
Maximum torque of screw	1040N·m
Number of barrel temperature zones	4
Barrel temperature control method	Electric heating/wind cooling dual action
Barrel temperature zone power	1.5kW/zone
Maximum operating temperature	350℃
Drying hopper	Capacity 25L Drying temperature room temperature -120℃ with automatic feeder
Drive motor of loss-in-weight feeder	Servo motor 0.75Kw
Screen changer	Double-station hydraulic screen changer
Melt pump	5cc
Melt pump drive	Servo motor 2Kw 2000rpm
Rated speed of melt pump	0-60rpm
Maximum temperature of melt pump	350℃
Mold head	Effective width 500mm; Die lip adjustment method: manual; Die lip thickness adjustment range: 0-1.5mm
Temperature control accuracy	±1℃
Material adaptability range	PE, PP, etc.
Working voltage	3-phase AC380V, 50Hz
Length × width × height of the entire line	About 49000×7300X3900mm
Storage temperature and humidity	Temperature: -25℃~+55℃ Humidity: 5%~95%
Operating temperature and humidity	Temperature: +05℃~+45℃ Humidity: 5%~95%
