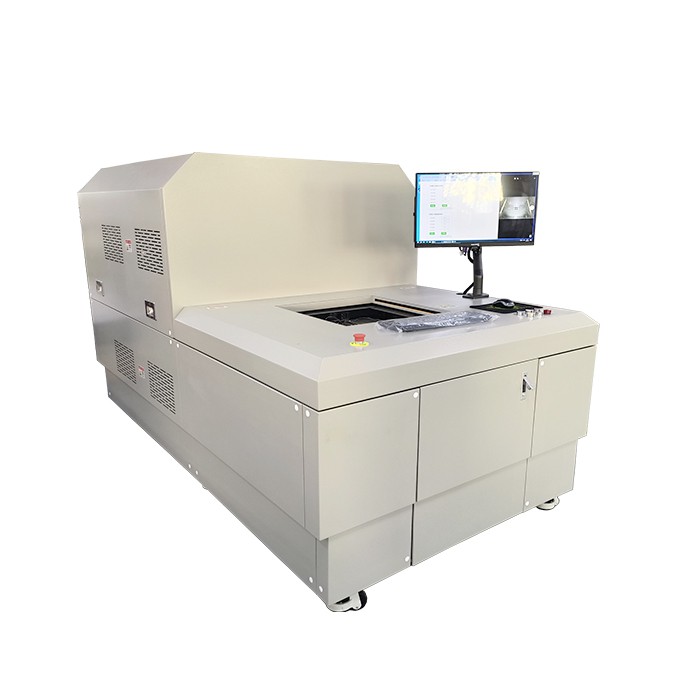

PP 5 Times Biaxial Stretcher For Polymer Films

     Our PP 5 Times Biaxial Stretcher For Polymer Films is a specialized piece of equipment designed for the production of high-quality polypropylene (PP) films through the biaxial stretching process. With a 5-fold stretching ratio, the machine achieves uniform stretching in both longitudinal (MD) and transverse (TD) directions, effectively improving the mechanical properties, transparency, and barrier performance of PP films. It is widely used in packaging, electronics, automotive, and other industries that require high-performance polymer film materials.​

• Equipped with a touch all-in-one control system and humanized structural design for greatly enhanced operational convenience.
• Configured with a bidirectional high-performance servo motor drive, supporting one-way/bidirectional variable-speed stretching modes to meet diverse experimental requirements.
• Compatible with multiple stretching modes including one-way constrained, one-way unconstrained, bidirectional synchronous and bidirectional asynchronous stretching, adapting to different experimental scenarios.
• Fitted with multiple sets of PID precise temperature control points for higher temperature control accuracy, more comprehensive coverage and more realistic data matching actual experimental working conditions.





POTOP's PP 5 Times Biaxial Stretcher For Polymer Films, a multi-functional piece of equipment integrating R&D and production, is trusted by customers in the high-end film industry, laboratory research institutions, and other sectors. Key application areas include:

1. Packaging Industry

   A primary application area for biaxially oriented polypropylene (BOPP) film. This stretching machine produces high-transparency, high-toughness BOPP film, widely used in food packaging (snack bags, candy wrappers, cigarette packaging), pharmaceutical packaging, daily chemical packaging, and flexible packaging.

2. Electronics and Optoelectronics Industry

  Used for producing precision optical films, capacitor films, and lithium battery separators. Biaxially oriented PP film possesses excellent dimensional stability, high insulation properties, and uniform thickness, making it suitable for mobile phone screens, display panels, capacitors, and lithium-ion batteries (as a separator to prevent short circuits).

3. New Energy Industry

  Biaxially oriented PP film exhibits excellent weather resistance, high-temperature resistance, and corrosion resistance, protecting solar panels from harsh outdoor environments and ensuring the safety and stability of lithium batteries.

4. Laboratories and R&D Institutions

  Suitable for materials research and process optimization in universities, research institutes, and corporate R&D centers. This stretching machine can simulate industrial production conditions, providing reliable experimental data on the mechanical properties, crystallinity changes, and microstructure evolution of polymer films under different stretching parameters (stretch ratio, stretching speed, stretching temperature).

5. Other Industrial Fields

  Used for the production of automotive interior films (wear-resistant and flame-retardant), architectural decorative films (weather-resistant and heat-insulating), and medical packaging films (high biocompatibility and barrier properties).









Model	FOCI-05
Applicable Materials	PE, PP, PET, PTFE, PVDF, etc.
Sample Thickness	0.02-2mm
Sample Size	Minimum 95mm×95mm, Maximum 110mm×110mm
Stretching Ratio	5:1 (for minimum size samples)
Stretching Speed	0-300mm/s (stepless adjustable)
Stretching Force	1000Nm
Fixture Air Pressure	2.5MPa
Temperature Control Range	Room Temperature - 250℃
Temperature Control Precision	±3℃
Working Voltage	3φ380VAC±10%, 1φ220VAC±10%, 50Hz
Rated Power	Approx. 20kW
Length × Width × Height	2650mm×1400mm×1560mm
Overall Weight	Approx. 1800kg



    POTOP adheres to the service tenet of "fast, decisive, accurate, thoughtful, and thorough," and is committed to providing comprehensive after-sales service to ensure the smooth operation of your equipment and maximize your return on investment. Our service principle is "Service First, Quality First." We provide the following after-sales services for the PP 5-times biaxial stretching machine:

• Installation and Commissioning: We have a professional technical team with over five years of experience providing remote guidance for installation, commissioning, and setup services to ensure the equipment operates at optimal performance. We will also provide a detailed installation and commissioning report for customer review.

• Training Service: We provide free remote technical training for your operators and maintenance personnel, covering equipment operation, parameter adjustment, daily maintenance, and fault diagnosis, helping your team quickly master the use of the equipment.

• Warranty Service: We provide a one-year free warranty for the entire machine (extendable warranty period available). During the warranty period, we will replace damaged parts free of charge (excluding damage caused by human error) and provide free on-site maintenance services.

• 24/7 Technical Support: Our after-sales service team is available around the clock to answer your technical questions, provide remote troubleshooting guidance, and resolve any issues you encounter during equipment operation.

• Customized Services: We offer customized solutions based on your specific production needs (such as adjusting equipment specifications, adding special functions, or adapting to special materials) to help you achieve better production results. Our R&D team will communicate with you in detail to ensure that the customized solution meets your actual needs.

• Lifetime Maintenance: We provide lifetime maintenance services for our equipment. After the warranty period, we will provide paid maintenance services at reasonable prices, charging only the cost price for replacement parts, helping you reduce long-term operating costs.

  If you are interested in POTOP's PP 5 Times Biaxial Stretcher For Polymer Films or have any questions about the product, please feel free to contact us. Our professional sales team will provide you with detailed product information, a customized quotation, and technical consultation, helping you choose the most suitable solution for your production needs. We look forward to cooperating with you and helping your business achieve greater success!​
