Lab High Temperature Biaxial Stretcher FOHI-10

Lab High Temperature Biaxial Stretcher FOHI-10

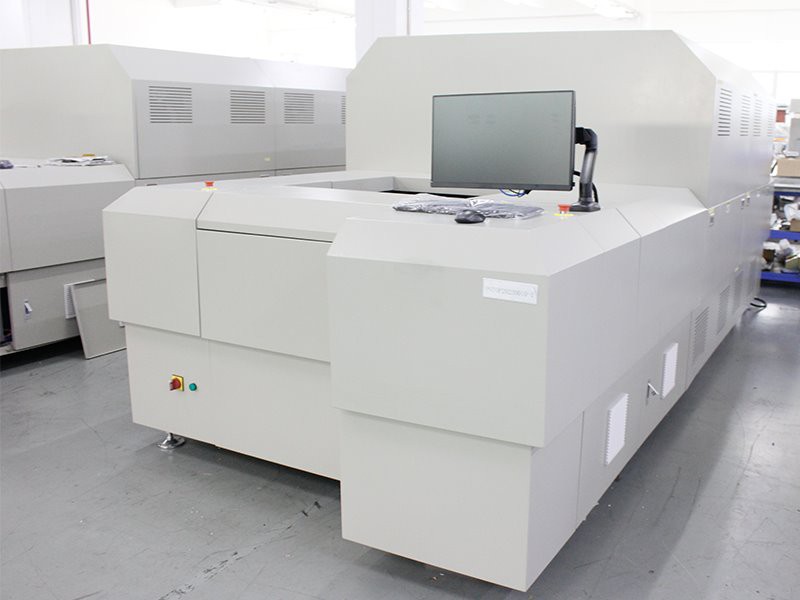

   The high temperature Biaxial Stretcher FOHI-10 is composed of clamping components, stretching components, stretching mechanism moving components, hot oven components, pneumatic air curtain components and electrical control system.

    The FOHI-10 High-Temperature Biaxial Stretcher enables precise tensile testing of polymer films, allowing researchers to stretch samples at controlled temperatures, adjustable speed, and customizable stretch ratios-delivering accurate, analyzable data for material science and industrial R&D applications.



Features of Lab High Temperature Biaxial Stretcher FOHI-10

• It can carry out unidirectional restricted, unidirectional unrestricted, bidirectional synchronous, bidirectional asynchronous and other stretching modes.
• The tension ratio of the vertical and horizontal direction can be adjusted, and the tension ratio is 10:1.
• The vertical and horizontal direction of the stretching speed is adjustable, stretching speed ~ 0.5 m/s.
• The temperature can reach 350℃.
• The temperature control accuracy is ±1.5℃.



Application of Lab High Temperature Biaxial Stretcher FOHI-10

• The new material's film-forming properties were tested and analyzed in the laboratory for both physical and chemical characteristics.
• Design of film formulations.
• Researching processes and optimizing parameters.



Packing and Shipping of Lab High Temperature Biaxial Stretcher FOHI-10

How to use the Lab High Temperature Biaxial Stretcher FOHI-10

FAQ:

1.What is the FOHI-10 Biaxial Stretcher used for?

The FOHI-10 is a precision lab equipment designed for biaxial stretching of polymer films, membranes, and sheet materials under controlled high-temperature conditions.



2.What are the key components of the FOHI-10 system?

• Clamping System: Secures samples without slippage.
• Biaxial Stretching Unit: Dual-axis servo-driven mechanism.
• High-Temperature Oven: Uniform heating with minimal thermal deviation.
• Pneumatic Air Curtain: Prevents heat loss and protects motors.
• Digital Control Interface: For real-time monitoring and data logging.



3.How is data collected and analyzed?

The integrated electrical control system records force, displacement, and temperature data, exportable for analysis in software like MATLAB or Excel.



4.What kind of payment terms are accepted if we  plan to buy the Lab High Temperature Biaxial Stretcher FOHI-10

 1.TT (Telegraphic Transfer) 2. Western Unio



5. How about the warranty and after-sale service of theLab High Temperature Biaxial Stretcher FOHI-10 ?

A: We provide one years warranty and lifetime technical support for all the machinery.

Help is always just one call or email, and then we can provide a suitable solution within 8

hours by analyzing and estimating the problem. Remote training and door-to-door service

is available.

Hot Tags: Lab High Temperature Biaxial Stretcher FOHI-10, China, suppliers, manufacturers, factory, price, for sale, Laboratory Biaxial Stretcher, Biaxial Stretching Simulator, Biaxial Film Stretcher, Biaxial testing, biaxial testing machine, Biaxial Stretcher

Parameters of Lab High Temperature Biaxial Stretcher FOHI-10

Item	Parameters
Applicable materials	PP, PE, PET, PPVDF, BOPP,BOPA,BOPET
Sample thickness	50μ m - 3mm
Minimum sample size	70×70mm
Maximum sample size	100×100mm
The number of oven	Two
Stretching speed	10-330mm/s adjustable
Stretch mode	At the same time, and first and then transverse
Speed mode	The constant rate
Draw ratio	10:1
Number / shaft of fixtures	Five units (20 in total)
Stretching force	2000N
Maximum temperature	350℃
Temperature control accuracy	±1℃
Drive way	servo motor
L*W*H	4000mm×2300mm×1850mm
All up	About 2,000kg
Working voltage	3 Phase AC 380V ± 10%, 50Hz
Heat the total power	40kw
The power of the machine	About 44kw
Control method	Siemens PLC Control
