Lab 4X Tensile Ratio Biaxial Stretcher
Lab 4X Tensile Ratio Biaxial Stretcher can make thick film samples of biaxial tensile film materials with a thickness of less than 1.5mm and a minimum of 85 square meters. According to the required tensile ratio, the film-forming tensile test can be carried out at the appropriate temperature and time for the laboratory to carry out physical and chemical test and analysis, and a wide variety of additives and formulas can be re determined according to the sample film properties. Then applied to the production line, the trial production cost can be greatly reduced.
Description
Specification Lab 4X Tensile Ratio Biaxial Stretcher
Lab 4X Tensile Ratio Biaxial Stretcher used in new product development and formulation optimization, polymer sheet film two-way tensile properties test, and evaluation of process technology, etc.
Any available at two-way stretch of crystalline and non-crystalline polymers, thick film print, can static stretching in the Lab 4X Tensile Ratio Biaxial Stretcher , such as PP, PE, PET, PPVDF, etc
Advantage of Lab 4X Tensile Ratio Biaxial Stretcher
Laboratory stretching machine for monoaxial & biaxial film orientation
Test films and sheets in a very simple manner
Sequential simultaneous stretching and Asynchronous stretching mode
Fully automated for complex deformations
High-definition CCD motion camera, real-time grasp the stretching dynamics
Data graphics and text real-time display

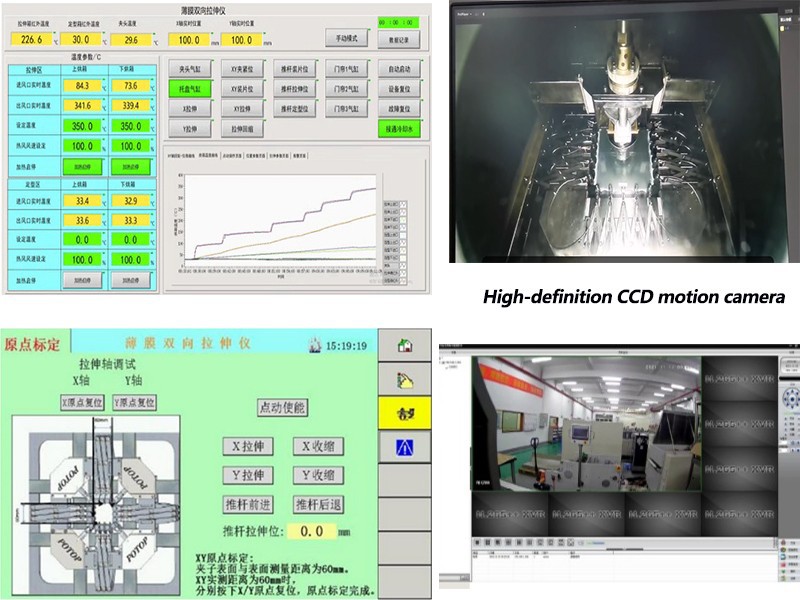

Interface of Lab 4X Tensile Ratio Biaxial Stretcher to share
Video of Lab 4X Tensile Ratio Biaxial Stretcher
It's very simple to do film streching test with Lab 4X Tensile Ratio Biaxial Stretcher
Application of Lab 4X Tensile Ratio Biaxial Stretcher
Hot Tags: Lab 4X Tensile Ratio Biaxial Stretcher, China, suppliers, manufacturers, factory, price, for sale, Biaxial Film Stretcher, Laboratory Biaxial Stretcher, Biaxial Stretcher, biaxial testing machine, Biaxial testing, cellulose acetate membrane
Parameters of Lab 4X Tensile Ratio Biaxial Stretcher
Applicable materials | PP, PE ,PET, PPVDF etc |
Sample thickness | 0.2-1.5mm |
Minimum sample size | 80×80mm |
Maximum sample size | 110×110mm |
Number of ovens | 2 |
Stretching speed | 10-330mm/s adjustable |
Speed mode | Stretch at the same time, and first longitudinal and then transverse/Constant rate |
Draw ratio | 4:1 |
Number of clamps /axis | 16 |
Tensile force | 500N |
Maximum temperature | 220℃ |
Temperature accuracy control | ±1℃ |
Driving mode | Servo motor |
Working voltage | 3-phase AC380V ± 10%,50Hz |
