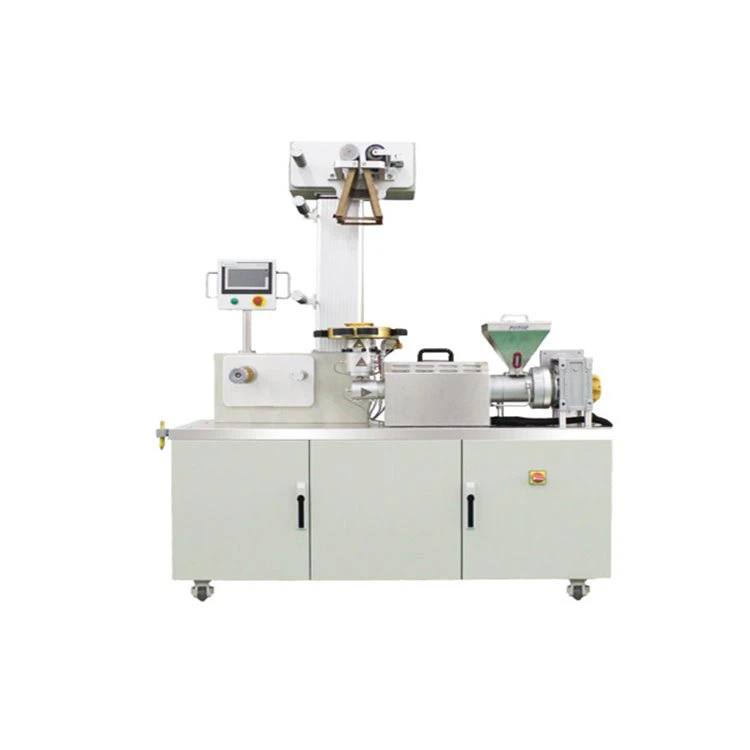

Portable Laboratory Thermoplastic Polymer Film Blowing Machine

We've been also a unified huge loved ones, anyone persist with the organization benefit 'unification, determination, tolerance' for 20mm Twin Screw Extruder, Twin screw extruders, Lab Multi Layer Blown Film Line. We can customize production according to the needs of each customer, and insist on satisfying users is our company's unremitting pursuit! We believe that the improvement of innovation ability is at the core of the whole situation of enterprise development, and is the driving force to push the enterprise forward continuously. With solid strength and efficient sales network, we have established a firm foothold in the industry, and our sales range covers the world.

1. Product description

Desktop Blown Film Machine adopts precision extrusion and high-performance blow molding technology, which is suitable for the blow molding of common polymer materials such as PE, and can be used together with special accessories. It can also realize the expanded functions of raw material dispersion detection and film quality detection such as gel spots, fish eyes, crystal spots, black spots, etc. It is an ideal experimental equipment for high-precision and high-performance film molding.

2.Technical Parameters

Model	FBVI-20/28
Applicable materials	PE,POF,PVC etc.
Screw diameter	20mm
L/D	28
Screw speed	0-100rpm
Maximum folding diameter	120mm
Product specifications	0.02-0.1mm
Roll surface width	220mm
Linear speed	0-10m/min
Pressure measurement range	0-50mpa,0.5%f.s
Heating/cooling method	Electric heating/fan cooling
Operating temperatur	room temperature -350℃
Temperature control accuracy	±1℃
Maximum output	5kg/h
Main motor power	3kw
Control	SIEMENS PLC control
Working voltage	Three-phase 380VAC±10%, single-phase 220VAC±10%, 50Hz
Rated power	About 9kw
L×W×H	1650mm×610mm×2135mm
Weight	About 550kg



Lab high performance desktop blown film machine application

● Equipped with Single Screw Extruder anda film blowing die a Film blowing Line comes out.

● Film bubble cooling, pressing and curing.

● Take-off and winding the tubular film.

● New formula development.

● Film blowing performance test.

● Masterbatch dispersion performance test.

● Optimization of blown film processing parameters.



3．About us

4．FAQ

1 Q:what about the warranty with after-sale service?

A: The test mchine is guaranteed for 12 month by POTOP, beside,we can help you to repair your problem controller, even it's not from our factory, after the warrantly, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problem and complaints in a professional and timely.



2 Q:can you customize the machine?

A: We can design and manufacture all kinds of non- standard machinery according to customers requirement. OEM is available for POTOP Products.



3 Q:Which brand are the accessories and electronic components in your machine?

A:We have a long term cooperations with Siemens, Schneider,Nuode etc.



4 Q:How many years manufacture experience do you have ?

A：We have 12 years' experience in this field. All staff have rich experiences to finish their work.

Mainly designing all kinds of Portable Laboratory Thermoplastic Polymer Film Blowing Machine of ordinary, middle and high grades. In the future development road, our company will continue to adhere to the quality of technology as the core competitiveness, high-quality products and sincere service as the foundation, to fully meet the needs of customers as its own responsibility, to make the enterprise bigger and stronger, to become a pioneer in the industry. Your inquiry will be highly welcomed and a win-win prosperous development are what we are expecting.
