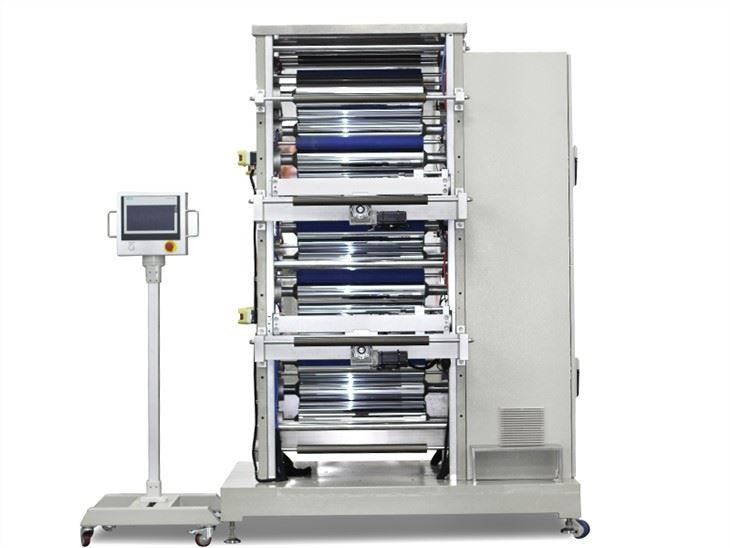

Lab Vertical Machine Direction Stretching Units
DO process is to stretch the film produced by blow film or flow film production line at a certain temperature and tensile ratio, and then heat treat it, and then cool it to room temperature
Description
Lab Vertical Machine Direction Stretching units Description
MDO technology involves subjecting a film, created through either blow film or flow film production lines, to a precise stretching procedure at a specific temperature and under a defined tensile ratio. This is followed by a heat treatment stage, after which the material is gradually cooled down to room temperature. This intricate process can be conducted either in an online or offline setting, depending on the specific production requirements.
Lab Small MDO Application
-
Laboratory preparation of longitudinal stretch film;
-
Research and Optimization of the Film Longitudinal Drawing Production Process;
-
Tensile property test of thin film;
-
Research and development of new film material formulation;
Research and Optimization of the Film Longitudinal Drawing Production Process
How does the Lab MDO work?
Video of the Lab Small MDO Stretcher
MDO is at the client company
Hot Tags: lab vertical machine direction stretching units, China, suppliers, manufacturers, factory, price, for sale, MDO Stretching Machine for Reverse Osmosis RO Membrane, MDO Stretcher, Machine Direction Oriented MDO Machine, Lab MDO Stretcher, MDO Stretching Unit, Lab MDO Stretching Machine
Parameters of Lab small MDO Stretcher
|
Item |
Content |
Indicator parameters |
|
Overall unit function |
Applicable materials |
HDPE ,LLDPE ,PP, PS, PA ,PET |
|
Stretch point |
2 |
|
|
Stretching speed ratio |
10 ：1 |
|
|
Roller width |
350 mm |
|
|
Film inlet width (max.) |
300 mm |
|
|
Film outlet line speed (max.) |
30m /min |
|
|
Synchronous mode |
1. Independent speed regulation of each roller 2. Synchronization of the whole machine |
|
|
Working voltage |
3 Phase AC 380V ± 10%, 50Hz |
|
|
Power of the machine |
42KW |
|
|
External size (long / width / height) |
2350/2140/2020 |
|
|
Work environment condition |
Temperature range |
15-30℃ |
|
Humidity range |
Relative humidity of the air is 70% |
|
|
Above sea level |
≤1000m |
|
|
Air pollution |
The equipment is not allowed to be installed in an environment with air pollution such as dust and corrosive gases |
