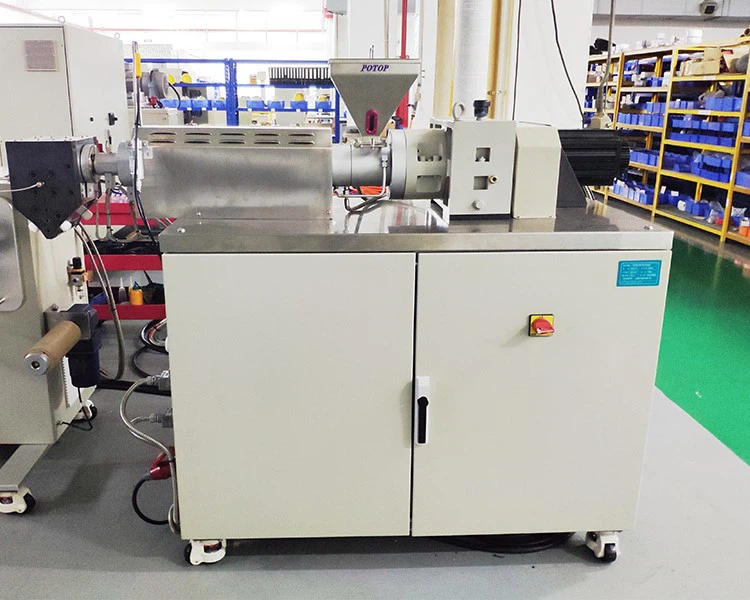

Small Single Screw Extruder
The small single screw extruder drived by servo motor, and famous brand electrical equipment and PLC system.
Description
Products Description
Wholesale Small Single Screw Extruder
1. Product description
The small single screw extruder drived by servo motor, and famous brand electrical equipment and PLC system.
Professionally manufactured screw and barrelleads to high processing precision and quality.
International-Brand variable frequency motor produceshigh precise screw speed.
Main performance and features
New product development and formula optimization
Production quality control
Production process optimization
User recipe access
1. The single screw extruder is driven by a servo motor, which has stable plasticization and good consistency;
2. Melt pressure and temperature sensors can be selected, and the test data is highly accurate;
3. Each roller of the calender is individually controlled by a servo motor to ensure the accurate and stable operation of each roller;
4. The computer-based measurement and control system and friendly operation interface are easy to operate and have more powerful functions;
5. Real-time measurement and graphic display of important data such as melt pressure and temperature are convenient for observation;
6. Emergency stop device and various safety protections ensure the safety of operators.
Product Video
Technical Parameters
|
Item |
Unit |
MESI-20/28 |
MESI-25/28 |
MESI-30/30 |
MESI-35/32 |
|
Screw diameter |
mm |
20 |
25 |
30 |
35 |
|
L/D ratio |
L/D |
28 |
30 |
32 |
|
|
Rated revolutionspeed |
rpm |
120 |
|||
|
Max. temp. |
℃ |
350 |
|||
|
Temp. control accuracy |
℃ |
±1 |
|||
|
Heating/cooling method |
Electrical heating / Air cooling |
||||
|
Total power |
kW |
10 |
14 | ||
|
Total weight |
kg |
300 |
350 |
400 |
|
|
Size (L×W×H) |
mm |
1970×690×1660 |
2070×690×1660 | ||
Wholesale Small Single Screw Extruder Application:
● The laboratory small single-screw extruder can complete the melting and plasticizing of polymer materials.
● Extrusion process research and parameter optimization
● The laboratory single-screw extruder is equipped with the corresponding die head to complete the forming of film messages, sheets, pipes, etc.
Drive assembly
Main motor: 23.6kw servo motor, dedicated servo driver
Reducer: dedicated servo motor reducer, self-lubricating system
Extrusion assembly
Cylinder: 38CrMoAlA material, built-in cooling water jacket at the feed port, polished and nitrided
Screw: 38CrMoAlA material, 45mm diameter, aspect ratio 28, polished and nitrided
Ceramic heater, fan cooling, stainless steel hopper
Melt measurement system
Temperature measurement: 0-400℃
Pressure measurement: 0-50MPa
About us

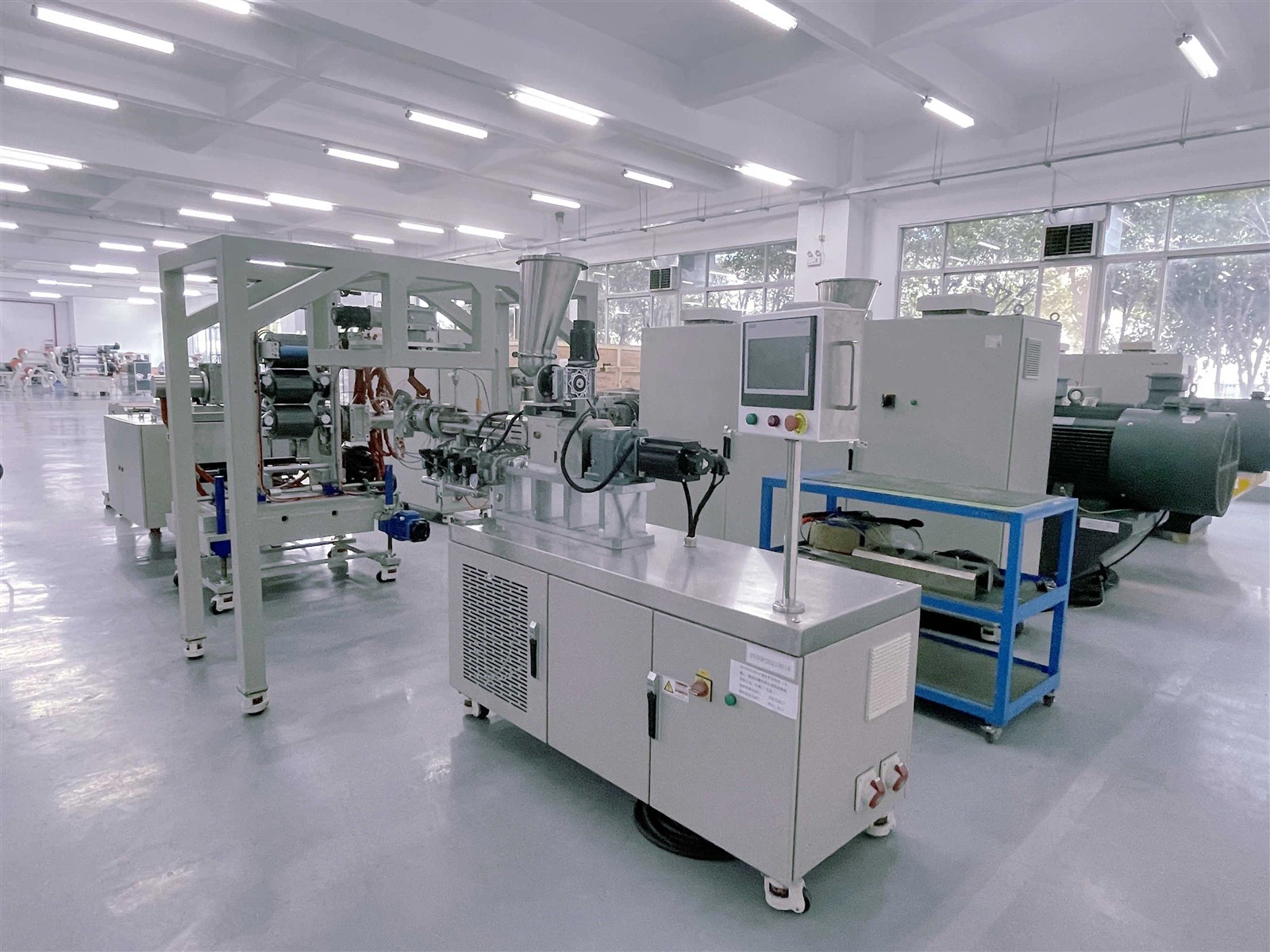

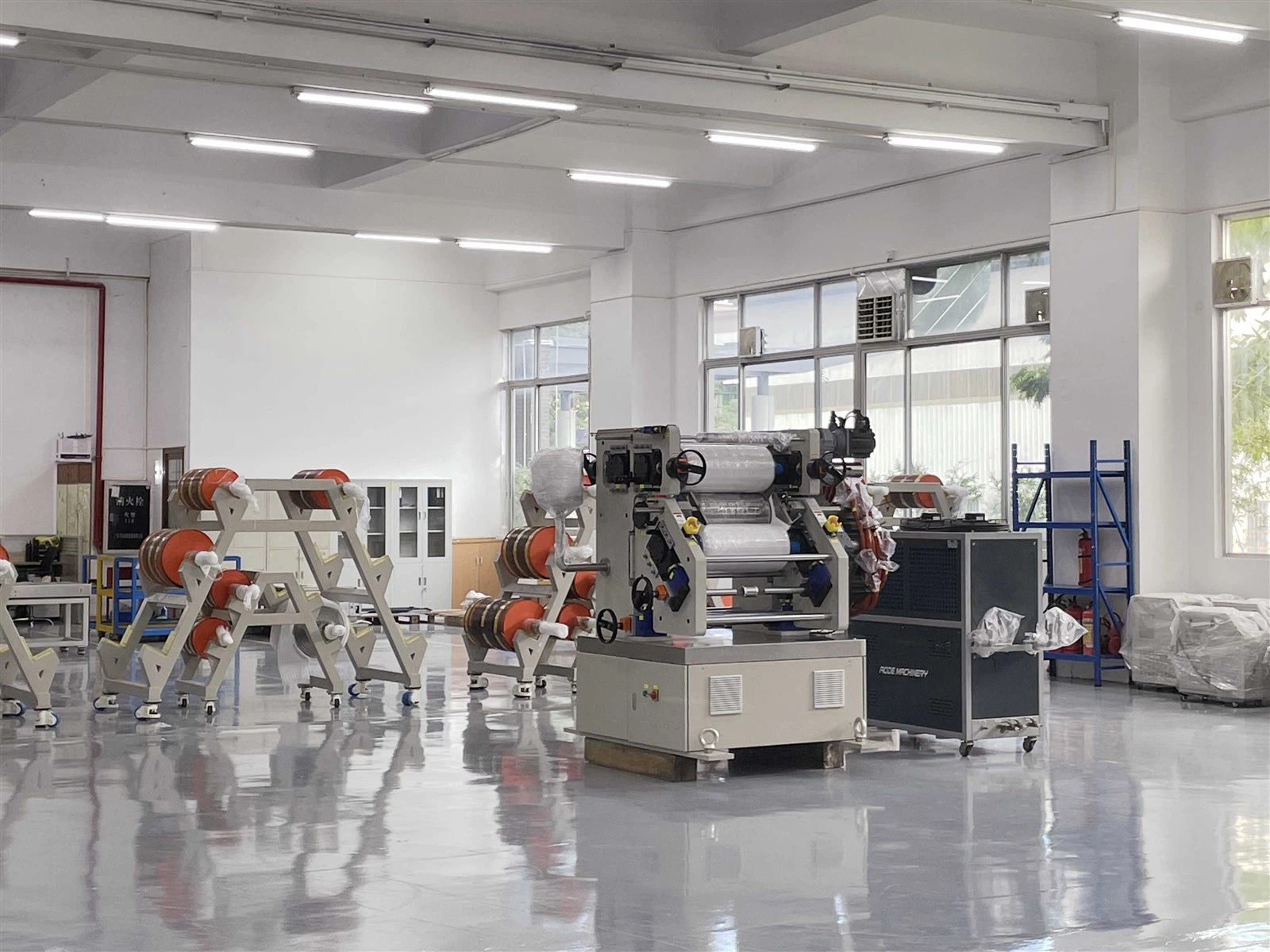

Exhibition
FAQ
1 Q: Are you trading company or manufacturer?
A: We are the manufacturer.
2 Q: Can you produce according to the samples testing?
A: Yes, we can make as per your sample or technical drawing.
3 Q: Do you test all your goods before delivery?
A: Yes, we test and make sure the machine works normally before delivery.
4 Q: Warranty and after sales service
A: We provide 1 year warranty free for spare parts. Engineer door-door installation and training service could be provided.
