Micro twin screw extruder

1. Product Introduction

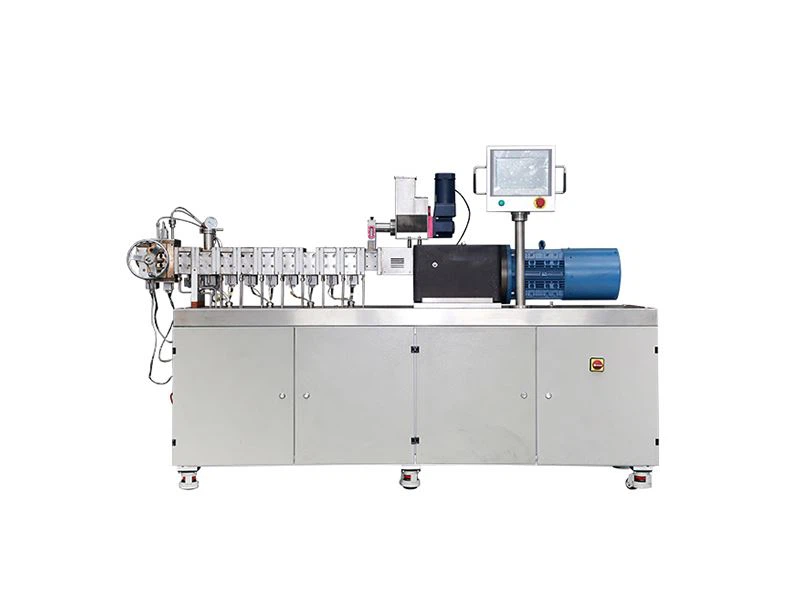

POTOP FDDI-16/40 Desktop type micro twin screw extrusion pelletizing machine is using Φ16mm twin screw, an intelligent measurement and control system based on PLC, not only process the adjusting range is wider than (including velocity, temperature, pressure, etc.), but also has the main technological parameters of real-time acquisition, graphic display and record stores, and other functions, is a scientific research institutes to develop new functional membrane and research materials formula, molding process of ideal experimental tools.

This machine can be combined with water tank and pelletizer to form complete strand cooling pelletizing line.

2. The application

1) Hot melts adhesive, general plastics, engineering plastics, elastomeric special materials such as plastic extrusion;

2)Reactive extrusion;

3) Composite extrusion foaming;

4) Reinforced polymer composites;

5)Material conveying independently, plasticizing, homogenization and quantitative extrusion, and for the corresponding module or unit feed;



3. Main performance and features

1, Twin screw extrusion machine adopts servo motor driver, plasticizing stability, and good consistency;

2, Choose the international well-known brands (GEFRAN) melt pressure and temperature sensors, high precision of test data;

3, The measurement and control system based on Siemens PLC and friendly interface, convenient manipulation and more powerful;

4 Melt pressure, temperature, and other important data real time measurement and graphic display, convenient observation;

5, User formula access;

6, Emergency-stop device and a variety of security protection are ensuring the safety of operating personnel.

7, Transmission part of the high strength aluminum alloy box, and tapered roller thrust bearing, the axial bearing capacity is stronger, the drive is more stable and reliable;

8, Implementation of special material feeding and conveying, avoid massive or flexible material bridge.

4.Technical Parameters

Item	Unit	MEDI-16/40
Screw diameter	mm	16
L/D	L/D	40
Rated screw speed	rpm	600
Max. temp.	℃	350
Temp. control accuracy	℃	±1
Heating/cooling method		Electrical heating / Oil cooling
Max. throughput	kg/h	3
Total power	kW	6
Total weight	kg	400
Size (L×W×H)	mm	1575×690×1630



Micro twin screw extruder application:

Small twin screw extruder use for Mixing, kneading, extruding and pelletizing of general and engineering plastics, elastomer.
Material blending modification and reactive extrusion.
Small twin screw extruder can be used in conjunction with small cast film machine, small calendering machine and small laminating machine to prepare the flow film, sheet material and multilayer composite film.
Modification of filled polymer composites.
Polymer dehydration, de-volatilization and exhaust.



5．About us

6．FAQ

1 Q: Are you trading company or manufacturer?
A: We are the manufacturer.


2 Q: Can you produce according to the samples testing?
A: Yes, we can make as per your sample or technical drawing.


3 Q: Do you test all your goods before delivery?
A: Yes, we test and make sure the machine works normally before delivery.


4 Q: Warranty and after sales service
A: We provide 1 year warranty free for spare parts. Engineer door-door installation and training service could be provided.
