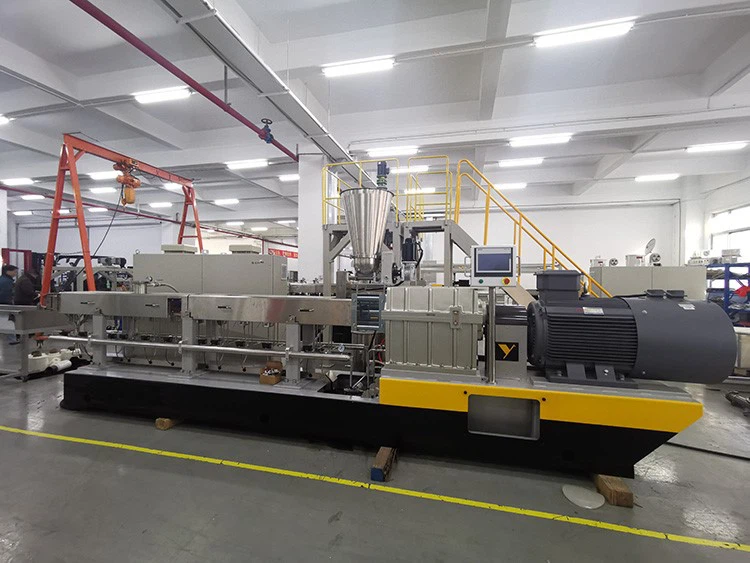

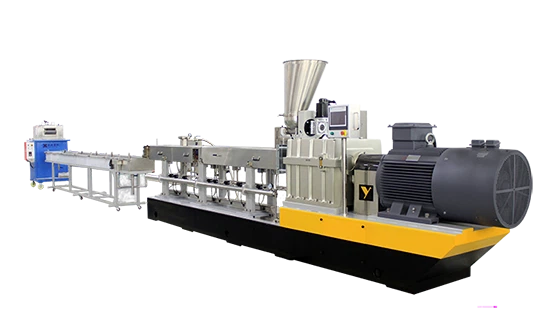

Laboratory Three-Screw Extrusion Pelletizing Line

●304 stainless steel desktop, high strength European standard integrated frame, practical and beautiful.

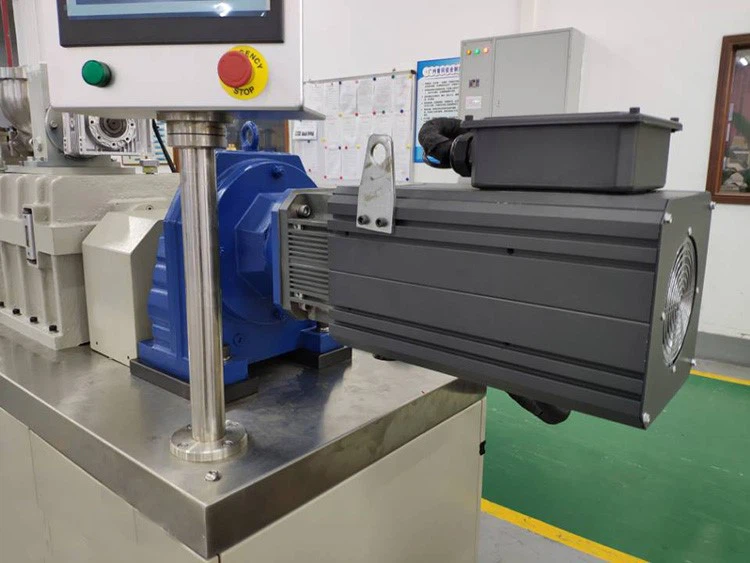

●High-performance servo motor, wide speed range, stable speed, using a combination of higher speed screws for extrusion processing, rubber raw materials through the machine screen, screen plate, and other components through higher pressure extrusion, and finally forming granular finished products.

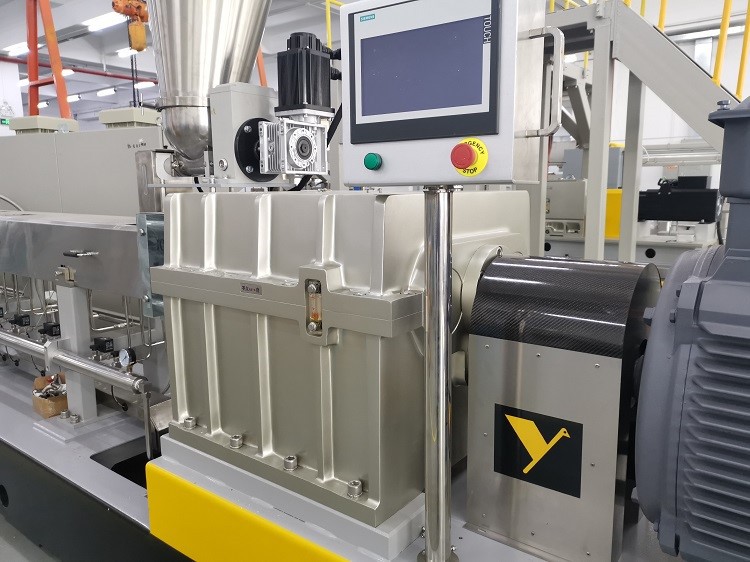

●SIEMENS PLC touch screen, humanized structural design, more convenient operation.

●The brand's fundamental components are used in the tiny integrated vacuum exhaust cooling system, which has great dependability and low noise.

●Screw and barrel have an advanced split design, and the screw is made up of interchangeable threaded components.

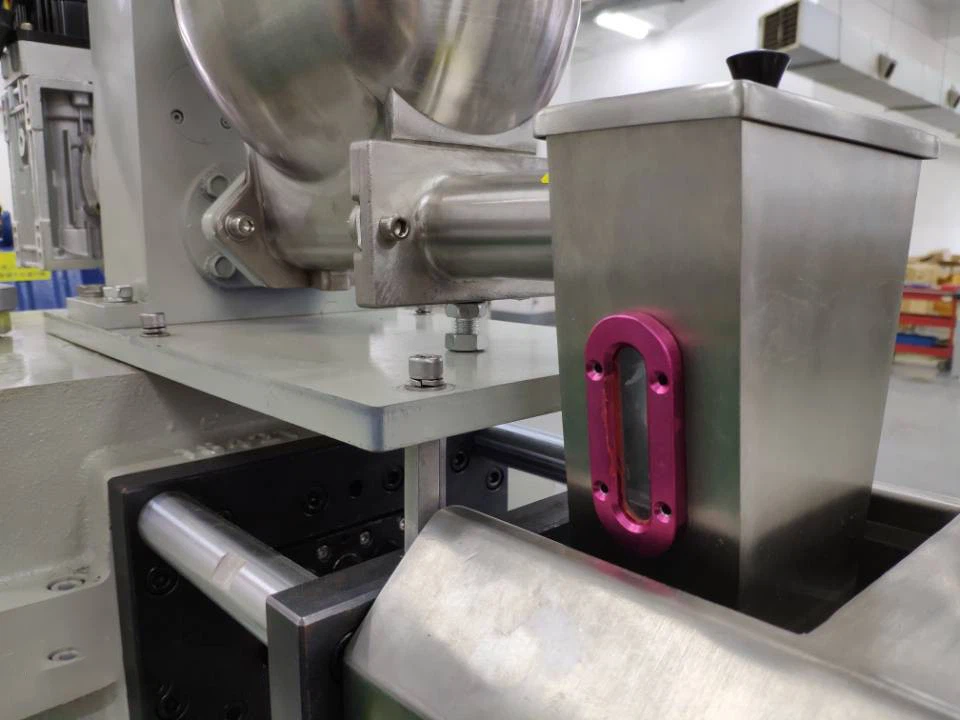

●A multi-feeding system may be designed to meet the needs of various production processes, resulting in high processing efficiency, stable mixing, smooth operation, and excellent finished product quality, as well as the elimination of the need for human mixing.

●The temperature control system uses a cast aluminum or cast copper heater for heating, which provides quick heating and a long life, and a high-temperature heat-conducting fluid for cooling, which eliminates temperature shock and allows for circulating cooling.



1. High efficiency and energy savings. The power output is consistent, and the power saves more than 3-5% more than the typical motor, reducing energy waste.

2. Stable pelletizing quality. The high-quality laboratory extrusion granulation line with triple screws for plastics uses an intelligent control system to precisely manage the temperature, pressure, and speed of extrusion, among other things, ensuring consistency and stability of finished product quality and reducing quality error.

3. Easy to use and maintain. The basic components of the high-quality laboratory extrusion granulation line with triple screws for plastics bare constructed of branded materials that have been deep treated and have a longer service life. Furthermore, the machine's operation is simple, and maintenance is also simplified.



1. Granulation mixing and blending of general-purpose plastics, engineering plastics, elastomers, and other materials.

2. Material plasticization and conveyance, reaction extrusion.

3. High-efficiency polymer alloy mixing.

4. Modification of polymer filling and improvement.

5. Dewatering, devolatilization, and exhaust.



Model	MGPL-22/40	MGPL-35/40	MGPL-50/40
Applicable materials	PE / PP / PS / ABS / PA and composite materials
Screw diameter	22mm	35mm	50mm
L/D	40
Screw speed	600rpm
Number of temperature zones	9
Rated power of screw motor	7.5kW
Operating temperature	350℃
Temperature control accuracy	±3°C
Hopper capacity	5L
Max. output	10kg/h
Control	SIEMENS PLC
Working voltage	Three-phase 380VAC±10%, Single-phase 220VAC±10%,50Hz
L×W×H	2328mm×690mm×1655mm
Storage temperature and humidity temperature	temperature - 25 ~ + 55 ℃ humidity: 5 ~ 95%
Operating temperature and humidity temperature	Temperature + 5 ~ + 45 ℃ humidity: 5 ~ 95%



       Guangzhou POTOP's equipment meets high performance standards, and the manufacturing process and progress of non-standard equipment projects are thoroughly quality checked. The spare parts used in the equipment are thoroughly audited, and the outsourced parts are supplied by international major brand businesses, such as Siemens, Schneider, Nordic, and so on. We inspect every part of each piece of equipment; from design to procurement to production, we pay attention to every detail, and our equipment can fulfill customer acceptance criteria. We have a competent pre-sales and after-sales service staff to provide a strong and powerful guarantee for each customer. Whether it is home assembly, commissioning, training, or maintenance, we insist on doing our best!



1.Q: How to install and operate?

   A:We will send our technician to install instruments.( operation demo video CD will be offered also.)

2.Q:Do you provide samples ? Is it free or extra ?

   A: Yes, we could offer the sample for free but not pay for the freight.

3.Q: We don't know much about the machine but we need it, how to decide which model is the best?

   A: Please send inquiry to our Sales telling what you need the machine to do.And then our team will work out best solutions for you by sending catalogue, demonstration video or testing of your sample.

4.Q: Which language can your team support?

   A:Our team can support you English, Spanish,Japanese

5.Q:How to inspect the goods?

   A:Products will be checked by our QC staff first, then our project manager. Client can come and check by themselves or third party check is available.
