Wet Process Twin-Screw Extrusion Casting Machine
Wet Process Twin-Screw Extrusion Casting Machine is a state-of-the-art equipment designed for advanced film and sheet production. Utilizing a wet process, this machine ensures superior material dispersion, uniformity, and high-quality output. Ideal for industries such as packaging, electronics, and specialty films, it offers exceptional precision and efficiency in processing a wide range of materials.
Description
Products Description
Wet process twin-screw extrusion casting machine is mainly composed of precision twin-screw extruder, screen changer, melt pump system, casting die, casting composite unit, traction winding unit and control system. The test material is first melted and homogenized by the precision twin-screw extruder, and then sent to the casting die, and then wound up through the casting cooling and two-layer composite substrate molding cooling. Instrument real-time measurement, melt pressure change curve, to achieve stable extrusion of materials, specific parameters are as follows.
Product Composition
Twin Screw Extruder
According to the material characteristics of the thread elements can be re-combined to realize the different characteristics of the material mixing.
Cast Die Heads
Additional screen changer and melt pump system to realize material mixing and extrusion without crystal point, stable plasticization, which is conducive to improving film quality.
Casting Roll
Super mirror rollers have good product effect.

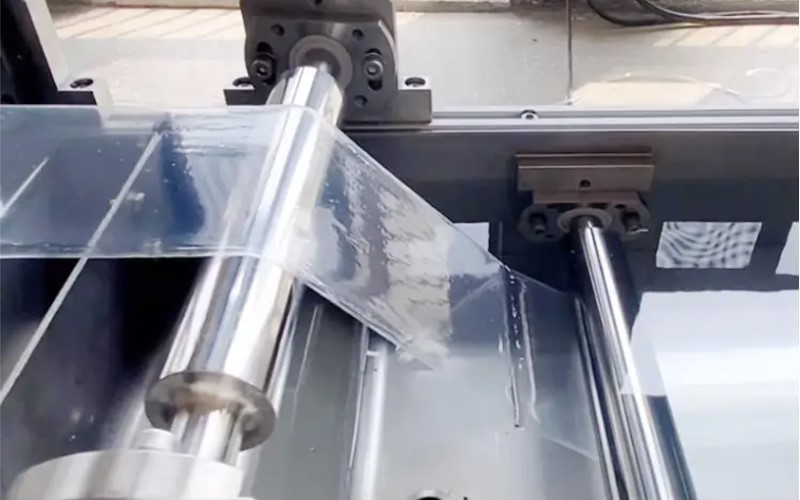

Wet molding
Film wet molding, extraction tank device.
Remarkable Service
Pre-sales consultation
Have a team of professionals to provide individualized needs of customers.
Stable delivery
Before leaving the factory, we will go through 100% inspection to ensure the quality.
Authoritative inspection
With SI900 certificate and many inventions.
Win-win cooperation
Established friendly cooperation with many colleges and enterprises.
Features of Wet Process Twin-Screw Extrusion Casting Machine
- Precision twin-screw extruder with servo motor drive, plasticizing stability, good consistency.
- Melt pump servo motor drive, to ensure the stability of the test melt flow rate, high precision.
- Select high temperature melt pressure and temperature sensors, high accuracy of test data.
- Based on the computer measurement and control system and the operator interface, easy to control, more powerful.
- Melt pump melt pressure, temperature and other important data of real-time measurement and graphic display, easy to observe.
- Emergency stop device and various safety protection, to protect the safety of operators.
Products Parameters
|
Output |
0-12kg/h |
|
Main drive power |
7.5KW |
|
Maximum screw speed |
600rpm |
|
Screw diameter |
21.7mm |
|
L/D |
40 |
|
Heating/cooling method |
Electric heating/air cooling |
|
Metering pump flow rate |
5cc/rev |
|
Width of mold lip |
150mm |
|
Die lip opening range |
0-0.8mm |
|
Roll width |
220mm |
