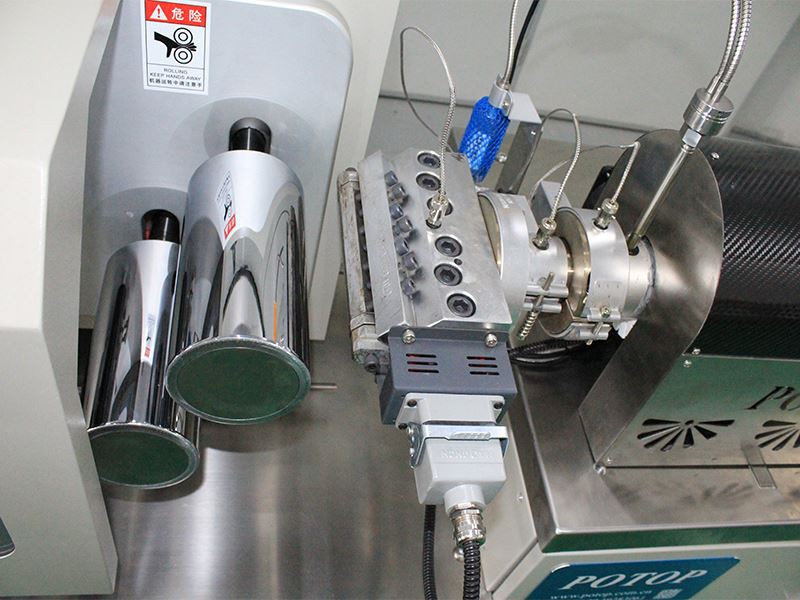

Desktop Cast Film Machine For Masterbatch Dispersion

1. Product description

The desktop casting machine is composed of a precision single-screw extruder, a casting die, a casting system, a traction system, a winding system, and a measurement and control system. It can realize polymer extrusion, casting, traction, trimming, and winding And other functions

2.Technical Parameters

Model	FDSI-25/28
Applicable materials	PP、PE etc.
Screw diameter	20mm
L/D	28
Screw speed	0-120rpm
Die width	140mm
Product width	0-60mm
Product thickness	0.02-0.1mm
Roll surface width	220mm
Line speed	0-5m/min
Pressure measurement range/accuracy	0-50mpa，0.5%f.s
Heating/cooling method	Electric heating/fan cooling
Operating temperature	Room temperature -350℃
Temperature control accuracy	±1℃
Max.output	3kg/h
Main motor power	3kw
Control	SIEMENS PLC
Working voltage	Three-phase 380VAC±10%,Single-phase 220VAC±10%,50Hz
Rated power	About 10kw
L x W x W	2105mm×860mm×1585mm
Weight	Approx 600kg

Desktop Cast Film Machine For Masterbatch Dispersion application:

● Casting experiment of polymer materials

● Casting production process research and parameter optimization

● New material casting performance test

● Test and evaluation of dispersion performance of masterbatch

3．About us

4．FAQ

1 Q: Are you trading company or manufacturer?
A: We are the manufacturer.

2 Q: Can you produce according to the samples testing?
A: Yes, we can make as per your sample or technical drawing.

3 Q: Do you test all your goods before delivery?
A: Yes, we test and make sure the machine works normally before delivery.

4 Q: Warranty and after sales service
A: We provide 1 year warranty free for spare parts. Engineer door-door installation and training service could be provided.

5.YouTube Video

https://www.youtube.com/watch?v=wB4FxTkqRwI
