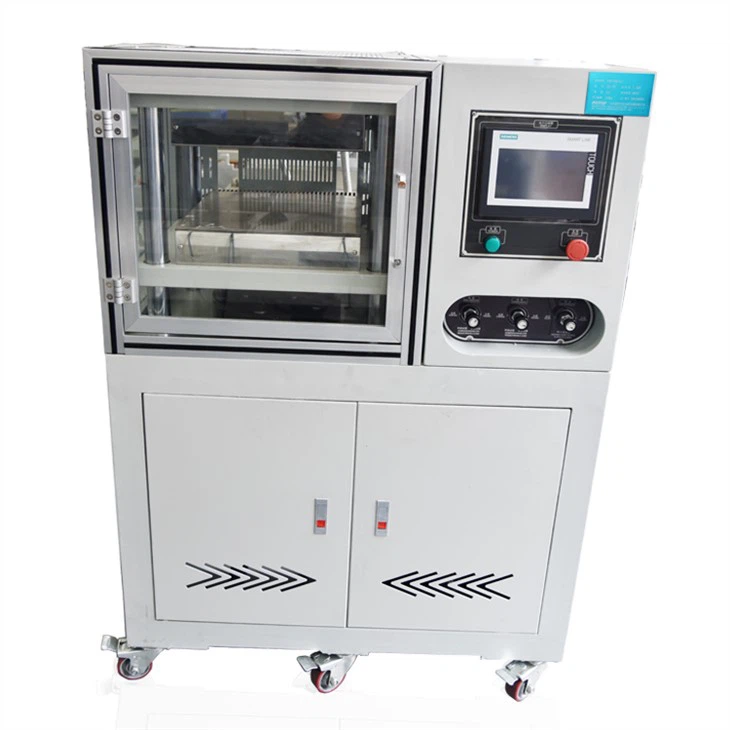

Lab Rubber Vulcanizing Press Machine
The main function of the plate vulcanizer is to provide the pressure and temperature required for vulcanization. The pressure is generated by the hydraulic system through the hydraulic cylinder, and the temperature is provided by the heating medium. Mainly used for the molding of flat products such as vulcanized flat tapes, rubber plates, polymers, etc. It has the advantages of high pressure per unit area of hot plates, reliable equipment operation, and less maintenance.
Description
Lab Rubber Vulcanizing Press Machine is designed to produce high-quality rubber sheets with the following features:
1. Uniform Curing: The machine ensures uniform heating and compression of the rubber sheets, which results in consistent and uniform curing of the rubber sheet.
2. Accelerated Curing: The machine generates heat and pressure, which speeds up the curing process, leading to reduced curing time and increased output.
3. Versatility: The machine can process a wide range of rubber grades and thicknesses, and it can also produce multi-layered rubber products with varying hardness and properties.
4. High Quality Output: The machine produces high-quality rubber sheets that exhibit improved strength, durability, and resistance to wear and tear.
5. User-friendly: The machine is easy to operate, and it features an intuitive control panel that allows users to adjust the temperature and pressure settings.
2.Lab Rubber Vulcanizing Press Machine Application
A.Rubber and plastic formula design: common rubber materials undergo heating, pressure, and vulcanization treatment
B.Preparation of simple rubber vulcanized products
C.Preparation of simple thermosetting material products
D.Hot pressing forming of common rubber, plastic, and composite materials
3.
|
model |
LSVI-25 |
|
Application |
Rubber, plastic, etc |
|
Clamping force |
25 tons (adjustable within 18Mpa) |
|
Maximum operating temperature |
300℃ |
|
Temperature control accuracy |
±3℃ |
|
Heating/cooling method |
Electric heating/water cooling |
|
Pressing plate size |
300mm×300mm×60mm |
|
Pressing plate distance |
150mm |
|
Working Layer |
Single layer second board |
|
Gradient pressurization |
2 segments |
|
Exhaust frequency |
0-10 times settable |
|
Motor power |
2.2kw |
|
Control Mode |
SIEMENS PLC control |
|
Working voltage |
Three phase 380VAC ± 10%, single phase 220VAC ± 10%, 50Hz |
|
Rated power |
About 8kw |
|
L*W*H |
950mm×500mm×1470mm |
|
Weight |
About 815kg |
4.About us
The polymer material rheological workstation manufactured by Guangzhou POTOP , with independent intellectual property rights, has 4 world first technologies and 10 invention patents. It can conduct extrusion capillary rheological performance testing, internal mixing torque rheological performance testing, as well as extrusion, blowing, sheeting, casting, granulation, mixing, internal mixing, injection molding and other molding processing experiments, providing users with a complete solution for testing the processing performance of rubber and plastic materials, Guangzhou Putong uses the best products to provide customers with the best service.
5.FAQ
1.Q:what about the warranty with after-sale service?
A: The test mchine is guaranteed for 12 month by POTOP, beside,we can help you to repair your problem controller, even it’s not from our factory, after the warrantly, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problem and complaints in a professional and timely
2、Q: After machine arrival, what will be the service for installation and training?
A: If you are close to our local agent, you can contact them directly for spot service.Usually we will send our engineer for overseas spot service to finish installation of the machine and operation training, which will take extra cost like air-ticket and accomodation.
3.Q:can you customize the machine?
A: We can design and manufacture all kinds of non-standard
machinery according to customers requirement. OEM is available for POTOP Products
4、Q:Does the power supply can customized?
A:YES ,if you need customized power supply,pls tell us when you put the order.
If you need to develop product with your own specification, we have professional engineers to work it out.
