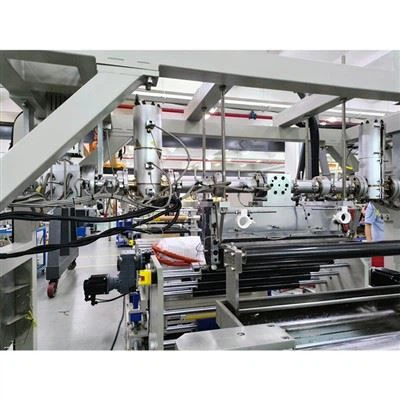

Wet Film Casting Test Line

Name: China Wet Film Casting Test Line Suppliers, Manufacturers - Factory Direct Price - POTOP
Brand: POTOP
SKU: 240198226

Applicable Materials：30% powder PVDF/PE + 70% solvent (or slurry with good fluidity at different ratios)

Send Inquiry

Description

Product Description

Feeding system:

First-stage stirring emulsification, second-stage stirring reactor, third-stage stirring reactor and pumping device.

Extrusion assembly

Built-in vacuum and cooling station (placed inside the rack);

Threaded element: special alloy, acid and corrosion resistant, vacuum annealing and full hardening treatment HRC62-63: Split cylinder, the base material is imported material, special process treatment, acid and corrosion resistant;

Membrane active rod

Servo motor + magnetic powder clutch drive, drive power 1.0kW;

Main motor overload, overcurrent and other fault alarms, shutdown protection:
The head is equipped with melt pressure and melt temperature display, in which the melt pressure is interlocked with the main motor to realize overpressure fault alarm and shutdown protection:
Melt pump motor overload, overcurrent, melt overpressure and other fault alarms, shutdown protection;
Emergency stop button, safety relay, emergency stop cable;
Safety grounding.

Product parameter

Applicable materials	PE/PVDF
Maximum output	100kg/h (depending on the material)
Main drive power	77kW
Maximum screw speed	600rpm
Main screw diameter	φ50. 5mm
Aspect ratio L/D	56
Barrel heating method/quantity	Electric heating/13; Power per zone 2200W
Feeder cooling method	Heat transfer oil
Barrel cooling method/quantity	Heat transfer oil/14;
Heating and cooling method	Electric heating/oil cooling
Barrel operating temperature	350℃
Temperature control accuracy	±2℃
Temperature control accuracy	±1℃
