Lab Blown Film Machine video

Lab Blown Film Machine

The discount lab blown film machine and high-performance blown film forming technology. It is suitable for blown film forming of commonly used polymer materials such as PE.

Description

Buy discount lab blown film machine for sale

1. Product description

The discount lab blown film machine and high-performance blown film forming technology. It is suitable for blown film forming of commonly used polymer materials such as PE. It can be used in combination with special accessories to achieve raw material dispersion detection, gel point, fish eye, and Expanded functions such as crystal dots, black dots and other film quality inspections are ideal experimental equipment for high-precision and high-performance film forming.

The film blowing machine is mainly used in the research and development of new material formulations, material blowing film performance testing, color masterbatch dispersion performance testing, film blowing machine production process parameter optimization, pigment dispersion performance testing, etc.

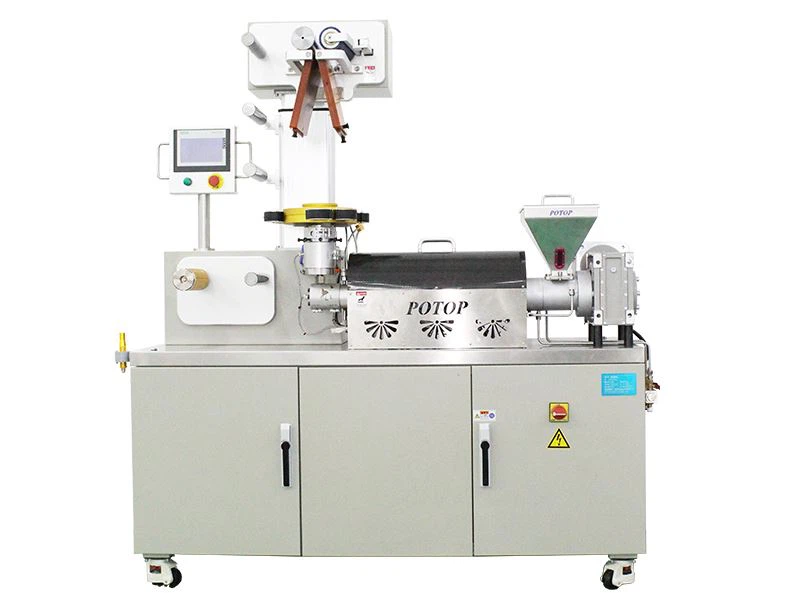

Lab blown film machine made in china

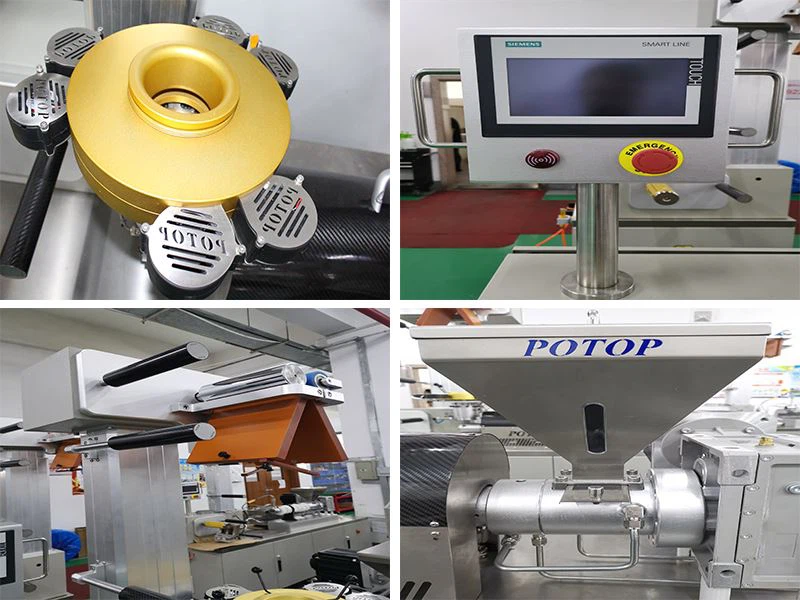

Lab blown film machine quotation


2.Technical Parameters

Model

FBVI-20/28

Applicable materials

PE、POF、PVC

Screw diameter

20mm

L/D

28

Screw speed

0-100rpm

Maximum folding diameter

120mm

Product specifications

0.02-0.1mm

Roll surface width

220mm

Linear speed

0-10m/min

Pressure measurement range

0-50mpa,0.5%f.s

Heating/cooling method

Electric heating/fan cooling

Operating temperatur

room temperature -350℃

Temperature control accuracy

±1℃

Maximum output

5kg/h

Main motor power

3kw

Control

SIEMENS PLC control

Working voltage

Three-phase 380VAC±10%, single-phase 220VAC±10%, 50Hz

Rated power

About 9kw

L×W×H

1650mm×610mm×2135mm

Weight

About 550kg


Discount lab blown film machine for sale application

● New material formulation research and development

● Material blowing film performance test

● Color masterbatch dispersion performance test

● Optimization of blowing film production process parameters

● Preparation of single-layer blown tubular film

● Research the blown film forming performance of the material

● Study the dispersion properties of pigments


3.About us

China Masterbatch dispersion tester

Masterbatch dispersion tester Certificate

4.FAQ

1 Q: Are you trading company or manufacturer?
A: We are the manufacturer.

2 Q: Can you produce according to the samples testing?
A: Yes, we can make as per your sample or technical drawing.

3 Q: Do you test all your goods before delivery?
A: Yes, we test and make sure the machine works normally before delivery.

4 Q: Warranty and after sales service
A: We provide 1 year warranty free for spare parts. Engineer door-door installation and training service could be provided.
