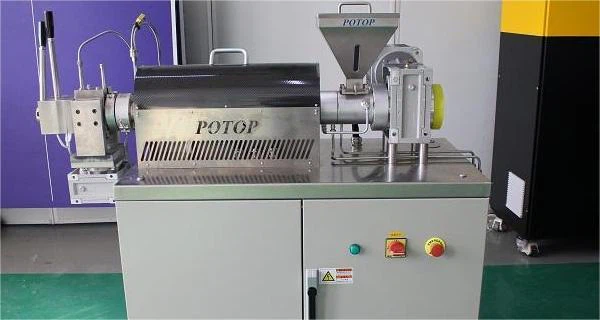

Laboratory Polymers Melt Filtering Stress Value Testing Machine

1. Formulation developers can collect FPV data to understand the filtration pressure values of different formulations to determine the optimal formulation composition. The test data can reveal the filtration pressure values of PET materials under different temperature, torsion, etc. Formulation developers can use this information to further investigate the factors that affect the filtration effect and make improvements to the PET material. For example, methods such as adding different additives and adjusting the mechanical structure can be adjusted to improve the filtration effect.

2. The study of FPV data by the equipment can assist producers forecast production efficiency and product quality for PET melt spinning. With a greater understanding of the filtration performance of various formulas and FPV data, manufacturers can estimate production efficiency and product quality to better manage production schedules and processes.

3. High-quality European standard integral frame, 304 stainless steel tableau top, functional and attractive

4. The grid is nitride-treated with high rigidity and wear resistance and comes with a manual plate screen changeover.

5. A high-precision and high-accuracy melt pressure sensor, GEFRAN, is utilized to test the data.

6. An outstanding-performance servo motor with a wide speed range and a consistent speed

7. The LabVIEW-based special software is extremely strong and has excellent interaction between humans and computers.

8. Design of a humanized structure.







Applicable material	PP,PA6,PA66,PET,PS,PE,etc.
Screw diameter	20mm
Screw ratio	28
Screw speed	0-120rpm
Melt pump speed	0-75rpm
Rated flow of melt pump	3cc
Melt pump driving power	0.75kW
Melt pump pressure measurement range	Before pump: 0-100bar; After pump: 0-300bar
Pressure measuring range/accuracy	0-50MPa/0.5%FS
Operating temperature	Room temperature-350℃
Temperature accuracy	±1℃
1#Strainer plate	Double-layer mechanism, filter layer 615×108 mesh
2#Strainer plate	Double-layer mechanism, filter layer 615×132 mesh
3#Strainer plate	Three-layer structure, filter layer 165×1400 mesh
Main motor power	3kW
Control method	SIEMENS PLC control
Working voltage	3φ380VAC±10%，1φ220VAC±10%，50Hz
Rated power	About 12kW
L×W×H	1230mm×725mm×1240mm
Weight	About 220kg
