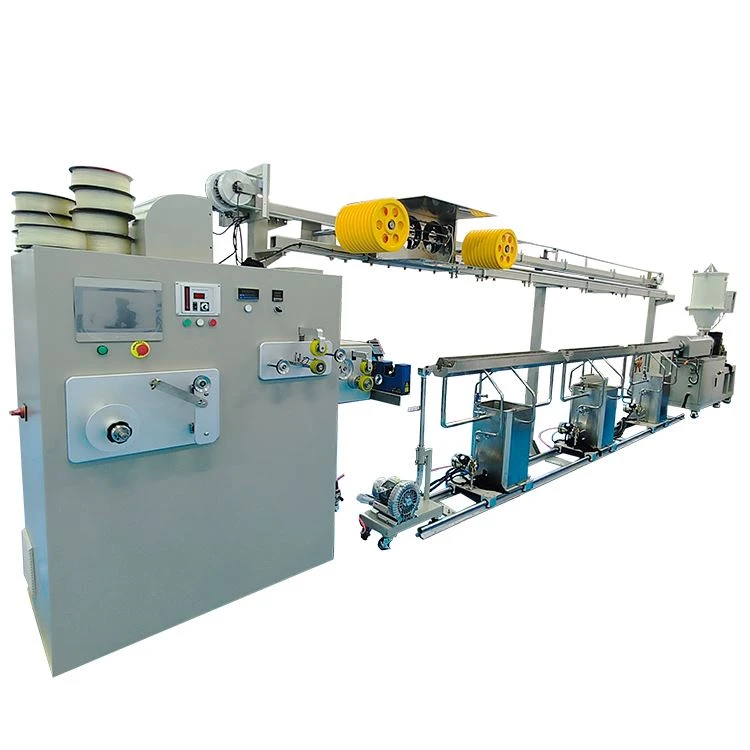

Lab PLA Filament Extruder Line

Lab PLA Filament Extruder Line is mainly composed of single-screw extruder, water tank, wire rewinding machine and operation screen. Suitable for PE, PP, PC, PLA, ABS, EVA, TPU, PVC and other plastic materials such as pipe extrusion molding, it has a beautiful appearance, compact structure, easy to operate and so on, and can be programmed to achieve the control and screen digital display, installation is very convenient!



1)Online display of operation information, emergency shutdown protection; easy to operate, safe and reliable.
2)Adopting touch screen and Siemens controller, the system is stable and highly integrated.
3)Precision processing extrusion mold, good plasticizing effect, stable extrusion.
4)High-strength European standard integrated frame, lightweight and beautiful, durable and hardworking.
5)Ceramic heater, fan cooling, 50L drying hopper.
6)Equipped with emergency stop button to ensure the safety of operation
7)High-precision limit sensor, configured with wire tracing device, accurate positioning.







Our extruder machine can produce silk PLA rainbow filaments, PLA rainbow filaments and luminous rainbow filaments:

Model	SESI-45/28
Applicable materials	PE,PLA,PP etc.
Screw diameter	45mm
L/D	28
Screw speed	0-75rpm
linear velocity	1.75mm
Line diameter accuracy	±0.02mm
Pressure measurement range/accuracy	0-50mpa,0.5%f.s
Operating temperature	Room temperature-350℃
Temperature control accuracy	±1℃
Main motor power	11.8KW
Rated power	30KW
L*W*H	12000mm*1450mm*2100mm
Weight	About 2100kg





Q1：Can your engineer come to the construction site to guide the installation?

A1:Yes, we can arrange our engineer to guide your installation, and salary is 150USD per day for one person, the air ticket/ visa/ local accommodation/ local traffic is in charge of customer.Generally there is no need to send our engineer to guide, because we will provide detailed installation drawings to the customer, the customer only need to find special installation team to execute.



Q2:what about the warranty with after-sale service?

A2: The test mchine is guaranteed for 12 month by POTOP, beside,we can help you to repair your problem controller, even it's not from our factory, after the warrantly, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problem and complaints in a professional and timely.



Q3: If the machine is broken what can I do?

A3: Free maintenance within the warranty period

Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).



Q4:Does the power supply can customized?

A4:YES ,if you need customized power supply,pls tell us when you put the order.

If you need to develop product with your own specification, we have professional engineers to work it out.
